Запчасти Case IH MAGNUM 200 (35.100.AR[07]) - CONTROL VALVE OIL SUPPLY LINES AND FITTINGS, TWIN FLOW - CVT - ASN ZFRH01001 (35) - HYDRAULIC SYSTEMS

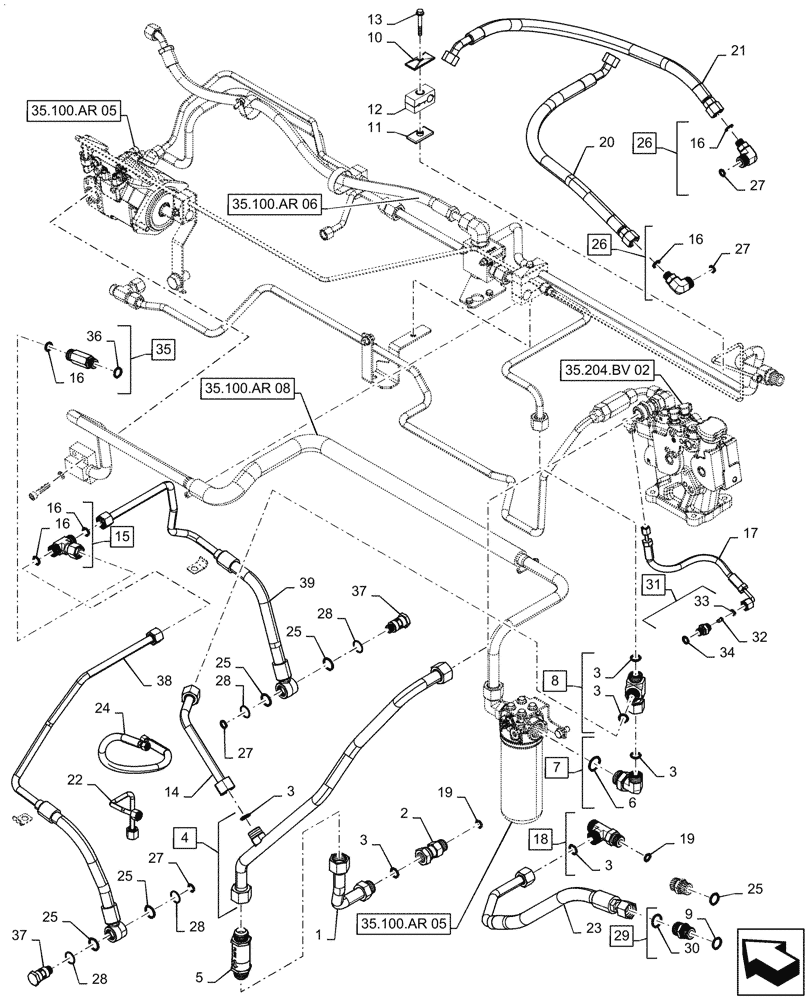

Схема запчастей Case IH MAGNUM 200 - (35.100.AR[07]) - CONTROL VALVE OIL SUPPLY LINES AND FITTINGS, TWIN FLOW - CVT - ASN ZFRH01001 (35) - HYDRAULIC SYSTEMS
35.100.ar 05
22
37
28
21
36
7
15
12
13
3
27
16
3
28
33
32
25
20
19
14
25
34
25
3
4
30
17
5
16
38
28
24
3
16
25
39
8
11
1
31
27
35
18
27
3
26
37
19
16
6
26
3
10
2
28
27
25
16
9
23
29
35.100.ar 08
35.100.ar 06
35.204.bv 02
35.100.ar 05

Артикул

Название

Примечание

Количество

1

47770703

HYD TUBE

Lower Aux Return, CVT

1шт.

2

87752093

HYD CONNECTOR

1шт.

3

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

4

47752496

HYD TUBE

Aux Return, Incl 3

1шт.

5

47752511

CHECK VALVE

1шт.

6

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

7

86579698

90 ELBOW,1 3/16"-12 ORFS x M33 x 2 ORB

Incl 3, 6

1шт.

8

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl 3

1шт.

9

14438185

O-RING,24mm ID x 3mm

1шт.

10

1347127C1

PLATE

1шт.

11

384871A1

PLATE

1шт.

12

87000143

CLAMP

1шт.

13

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

14

47734969

HYD TUBE

Filter Inlet

1шт.

15

5197110

TEE,1"-14 UNS

Incl 16

1шт.

16

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

17

47771470

HYDRAULIC HOSE

Aux LS Bleed

1шт.

18

86579706

TEE,1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 3, 19

1шт.

19

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

20

87316344

FLEXIBLE HOSE

Lift Cylinder LH Low Pressure

1шт.

21

87316345

FLEXIBLE HOSE

Lift Cylinder RH Low Pressure

1шт.

22

47711840

HYD TUBE

Pilot Supply, Remotes

1шт.

23

87608163

HYDRAULIC HOSE

Supply to Remotes

1шт.

24

87608165

HYDRAULIC HOSE,6.4mm ID x 720mm L, SAE 100R2

LS Remote

1шт.

25

9672549

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

5шт.

26

5185562

ELBOW

Incl 16, 27

2шт.

27

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

28

5189534

WASHER,25.8mm ID x 30.2mm OD x 1.1mm Thk

4шт.

29

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

Incl 9, 30

1шт.

30

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

31

84162690

ORIFICE,Hex, M16 x 1.5 x 33.5mm L

Incl 32 - 34

1шт.

32

133519C1

SCREEN

1шт.

33

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

34

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

35

84323257

HYD CONNECTOR,M22 x 1.5 x 83mm L

Incl 16, 36

1шт.

36

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

37

84544103

HYD CONNECTOR,M18 x 1.5 x 55mm L

2шт.

38

84544105

PIPE

LH Lift Cylinder

1шт.

39

84544109

PIPE

RH Lift Cylinder

1шт.

Выбрано товаров: 39
