(35.100.AR[06]) - CONTROL VALVE OIL SUPPLY LINES AND FITTINGS, TWIN FLOW - CVT - ASN ZFRH01001

Запчасти Case IH MAGNUM 200 (35.100.AR[06]) - CONTROL VALVE OIL SUPPLY LINES AND FITTINGS, TWIN FLOW - CVT - ASN ZFRH01001 (35) - HYDRAULIC SYSTEMS

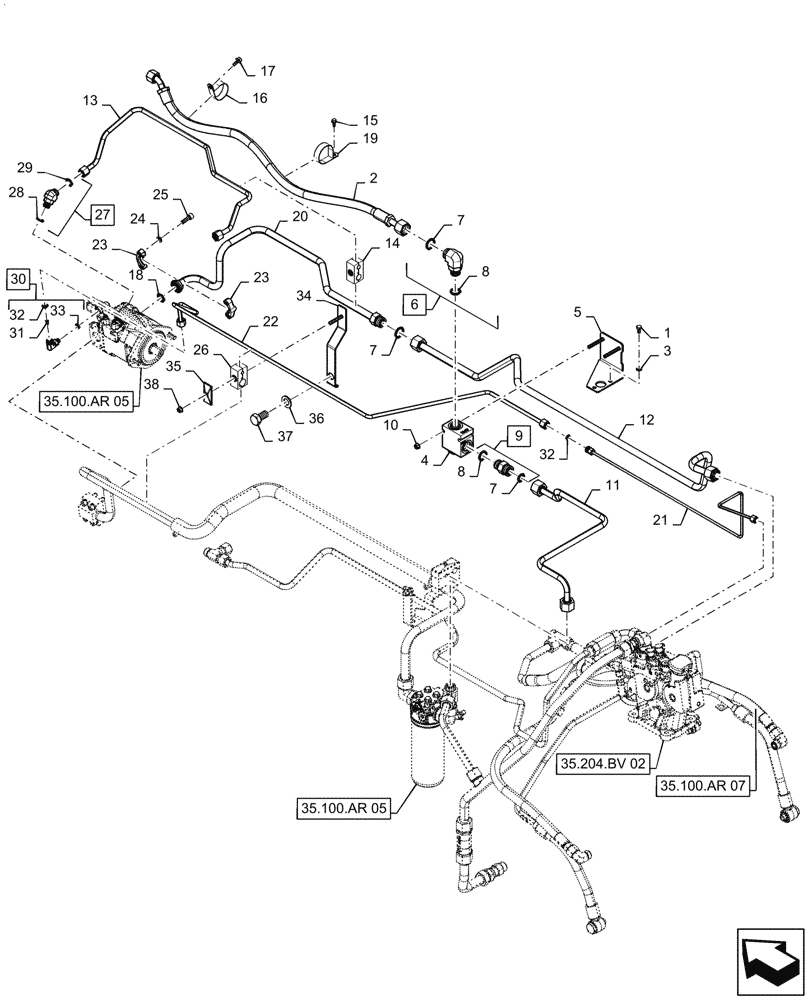

Схема запчастей Case IH MAGNUM 200 - (35.100.AR[06]) - CONTROL VALVE OIL SUPPLY LINES AND FITTINGS, TWIN FLOW - CVT - ASN ZFRH01001 (35) - HYDRAULIC SYSTEMS
35.100.ar 05
21
28
11
31
25
26
37
13
12
33
10
23
30
34
18
9
14
24
27
8
4
29
1
23
7
32
15
36
7
7
38
8
22
2
20
16
5
6
17
3
19
35
32
35.100.ar 07
35.100.ar 05
35.204.bv 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

2

47765889

HYDRAULIC HOSE

Inlet Charge, CVT

1шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

4

47765301

CHECK VALVE

Check

1шт.

5

47765879

BRACKET

Check Valve Mount

1шт.

6

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 7, 8

1шт.

7

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

9

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 7, 8

1шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

11

47765885

HYD TUBE

Inlet Charge, CVT

1шт.

12

47628330

TUBE

Pressure, Rear,CVT

1шт.

13

47628338

TUBE

Case Drain, CVT

1шт.

14

87000153

CLAMP,2 Hole, 19.05 - 12.70 mm Dia Ribbed, 37mm H x 67mm L

1шт.

15

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

16

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

18

86629540

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

19

87573379

CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

20

47795121

HYD TUBE

Pressure, Front, CVT

1шт.

21

47771434

HYD TUBE

Load Sense, Rear

1шт.

22

47762172

HYD TUBE

Load Sense, Front

1шт.

23

70921115

HALF-FLANGE

2шт.

24

892-11010

LOCK WASHER,M10

4шт.

25

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

26

87000142

CLAMP,2 Hoses

1шт.

27

86512032

ELBOW

Incl 28, 29

1шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

30

451226A1

90 ELBOW

Incl 31, 32, 33

1шт.

31

133519C1

SCREEN

1шт.

32

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

33

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

34

47596690

BRACKET

LH Support

1шт.

35

1347127C1

PLATE

1шт.

36

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

1шт.

37

73172048

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

1шт.

38

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.
