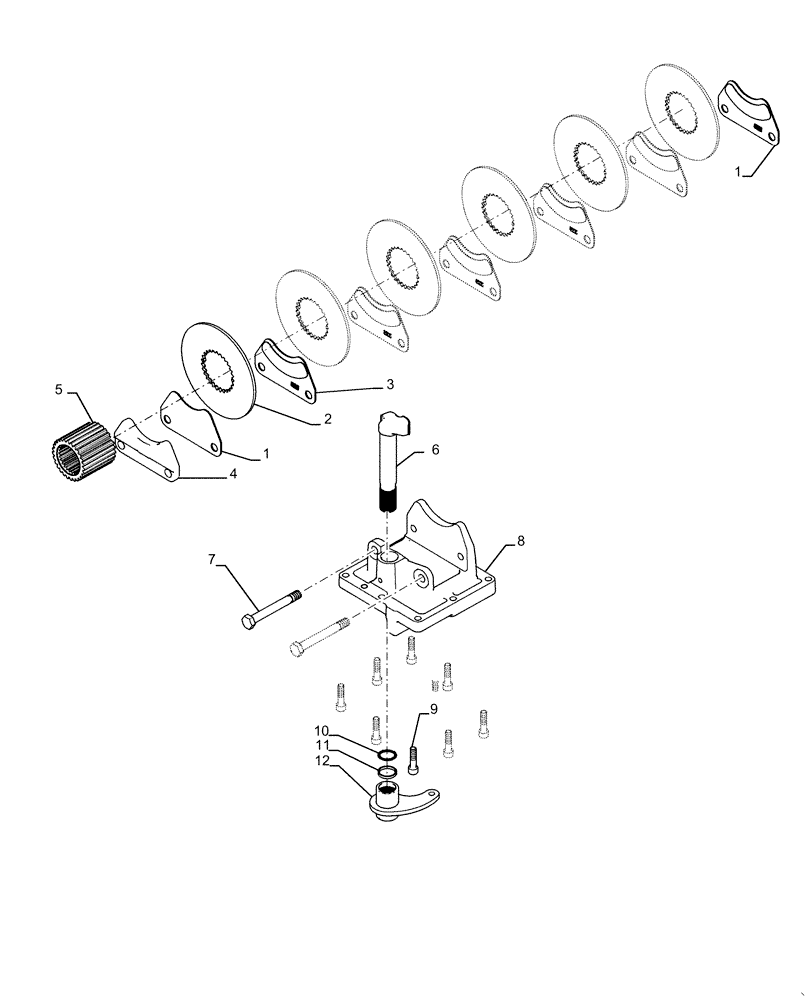

Запчасти Case IH MAGNUM 200 (33.110.AV[02]) - PARKING BRAKE - ASN ZERH08100 (33) - BRAKES & CONTROLS

1

5196712

BRAKE PAD,3.1mm Thk

Outer

2шт.

2

47663732

BRAKE DISC

Parking Brake

6шт.

3

5196706

BRAKE PAD,4.2mm Thk

Center

5шт.

4

84152436

BRAKE SHOE

Jaw

1шт.

5

5195109

GEAR

Hub Discs Parking Brake

1шт.

6

87740212

LEVER

Internal Control

1шт.

7

84152439

SET SCREW,M14 x 1.5 x 16mm, Class 8.8

2шт.

8

87302426

SUPPORT

Hand Brake Moving Sectors

1шт.

9

14307724

HEX SOC SCREW,M10 x 1.25 x 40mm, Cl 8.8, Full Thd

8шт.

10

14458080

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1шт.

11

5198146

SHIM,28.1mm ID x 31.9mm OD x 4mm Thk

28mm ID x 31mm OD x 4mm Thk

1шт.

12

47719447

LEVER

Control Assy

1шт.
