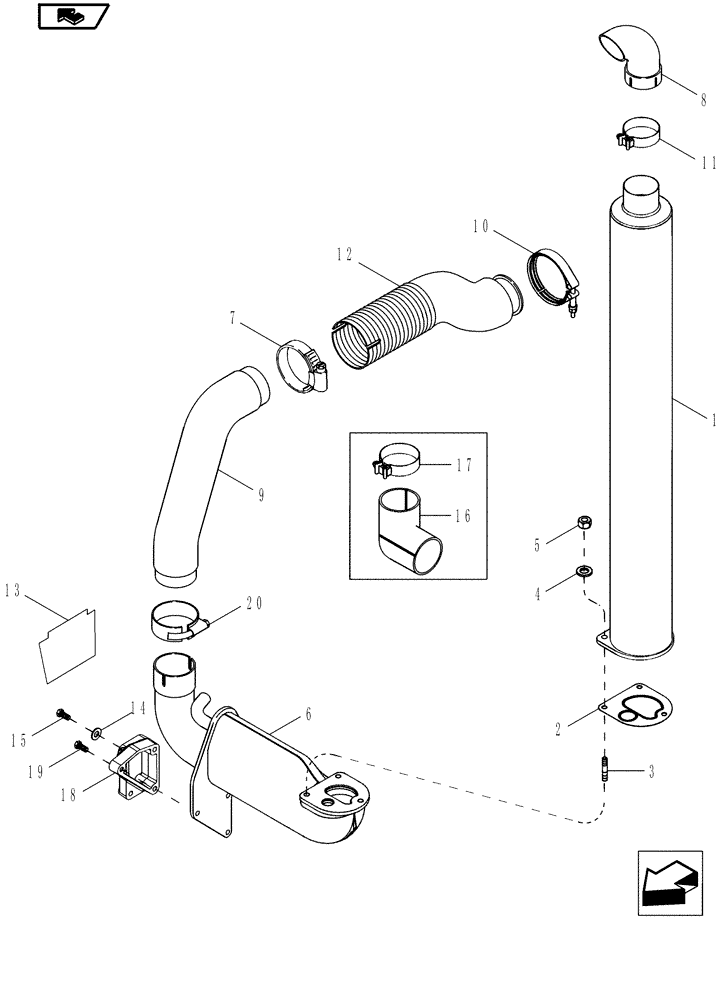

Запчасти Case IH MAGNUM 190 (10.254.03) - EXHAUST SYSTEM (10) - ENGINE

1

87623383

MUFFLER,Aspirated

Standard

1шт.

1

87369363

MUFFLER

Spark Arrester

1шт.

2

226775A1

GASKET,1.22mm Thk

1шт.

3

387795A1

STUD

3шт.

4

387798A1

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

5

387796A1

NUT

3шт.

6

87588155

EXHAUST SYSTEM PIPE

1шт.

7

87427885

CLAMP,101.4mm ID

1шт.

8

87623361

EXTENSION

Use with Standard Muffler

1шт.

8

87381922

EXTENSION

Use with Spark Arrest Muffler

1шт.

9

87388791

EXHAUST SYSTEM PIPE,101 mm ID x 118 mm OD

1шт.

10

J903652

CLAMP

1шт.

11

A173381

CLAMP,117.7mm ID

Use with Standard Muffler

1шт.

11

87449404

CLAMP,101.4mm ID

Use with Spark Arrest Muffler

1шт.

12

87746656

TUBE,613.3, 159 mm L

1шт.

13

84139016

HEAT SHIELD

Self Adhering

1шт.

14

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

15

828-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

2шт.

16

87483050

FOAM INSULATION

Exhaust

1шт.

17

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

2шт.

18

87727815

SPACER

1шт.

19

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

3шт.

20

87449404

CLAMP,101.4mm ID

1шт.

21

87427885

CLAMP,101.4mm ID

1шт.
