(10.103.03) - FLYWHEEL, WITH CONTINUOUSLY VARIABLE TRANSMISSION

Запчасти Case IH MAGNUM 190 (10.103.03) - FLYWHEEL, WITH CONTINUOUSLY VARIABLE TRANSMISSION (10) - ENGINE

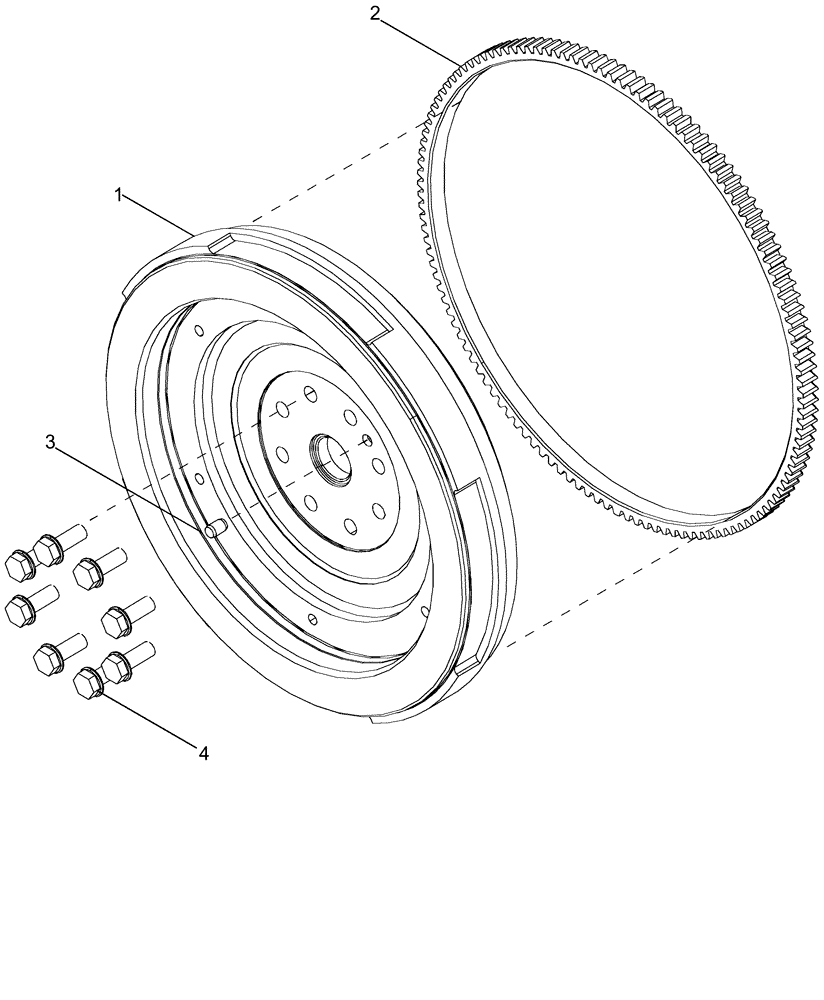

Схема запчастей Case IH MAGNUM 190 - (10.103.03) - FLYWHEEL, WITH CONTINUOUSLY VARIABLE TRANSMISSION (10) - ENGINE
3
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87740777

ENGINE FLYWHEEL

1шт.

2

4895353

RING GEAR,127T, 15.88mm L

1шт.

3

4892925

DOWEL,M10 X 15mm

1шт.

4

4894641

CAPTIVE WASHER SCREW,M12 X 1.25 X 31mm

8шт.

Выбрано товаров: 4
