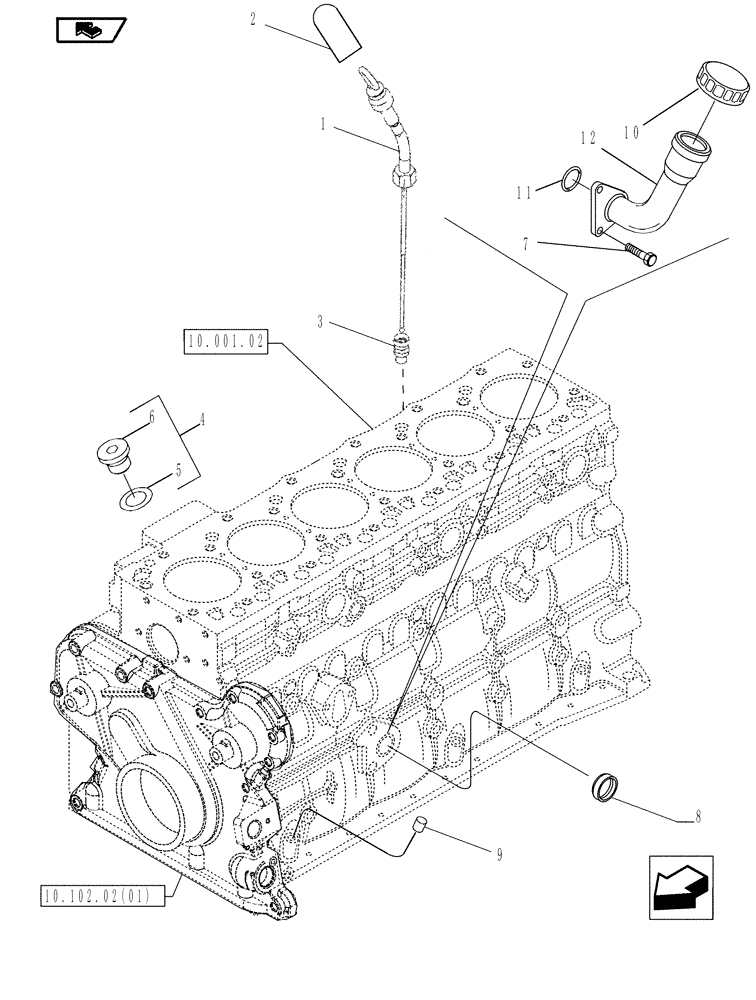

Запчасти Case IH MAGNUM 190 (10.102.01[02]) - ENGINE OIL FILL & DIPSTICK (10) - ENGINE

1

2859204

DIPSTICK

ASSY

1шт.

2

2857051

PLASTIC PLUG,25mm ID, 70mm L

Cover

1шт.

3

NSS

NOT SOLD SEPARAT

Mount

1шт.

4

4897330

HEX SOCKET PLUG,M12 x 1.5

Assembly, Inc. 5, 6

2шт.

5

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG

1шт.

7

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

2шт.

8

4895037

EXPANSION PLUG,32.03mm

1шт.

9

4895406

EXPANSION PLUG,9.8mm OD

3шт.

10

2853410

FILLER CAP,Female

1шт.

11

2852135

O-RING,2.6mm Thk x 37.7mm ID

1шт.

12

2859216

TUBE

1шт.
