(90.160.01) - CAB, INSTRUMENT PANEL

Запчасти Case IH MAGNUM 190 (90.160.01) - CAB, INSTRUMENT PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

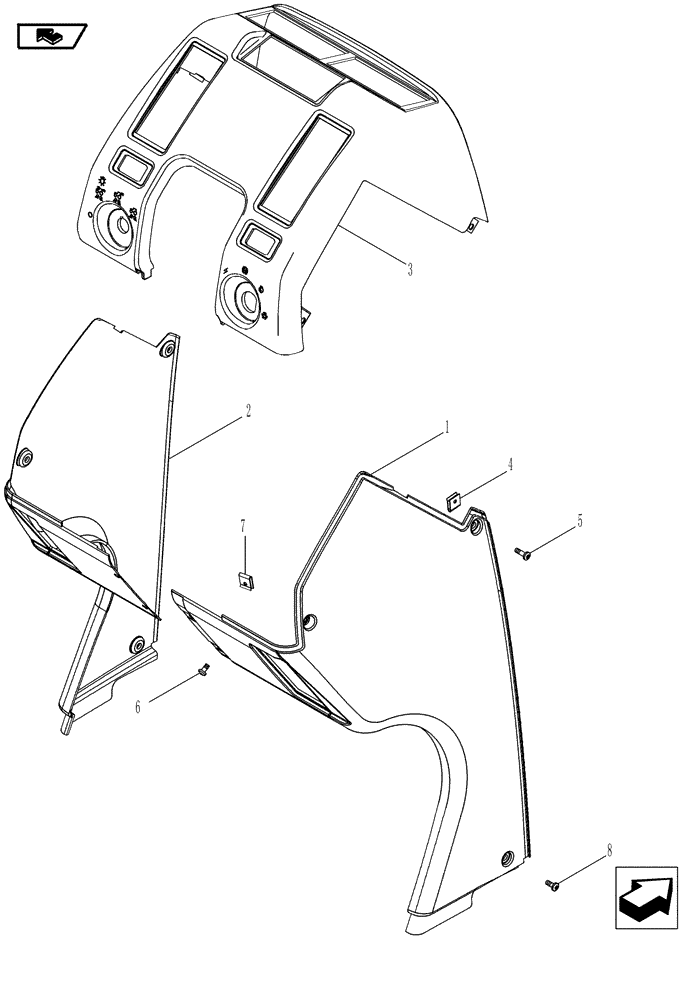

Схема запчастей Case IH MAGNUM 190 - (90.160.01) - CAB, INSTRUMENT PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
3
home
5
6
2
8
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

358671A1

COVER

Right Hand

1шт.

2

358670A1

COVER

Left Hand

1шт.

3

87449853

COVER

Top

1шт.

4

131-839

SPRING NUT,U, #10-16, Panel type

4шт.

5

360362A1

CAPTIVE WASHER SCREW

No. 10 x 1

4шт.

6

360363A1

SCREW,Phillips Drive, Round HD, #10 - 16 x 3/8"

2шт.

7

131-832

SPRING NUT,U, #10-16, Panel type

2шт.

8

362394A1

CAPTIVE WASHER SCREW

2шт.
