(90.150.04) - FRONT ISOMOUNTS, WITH CONTINUOUSLY VARIABLE TRANSMISSION

Запчасти Case IH MAGNUM 190 (90.150.04) - FRONT ISOMOUNTS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

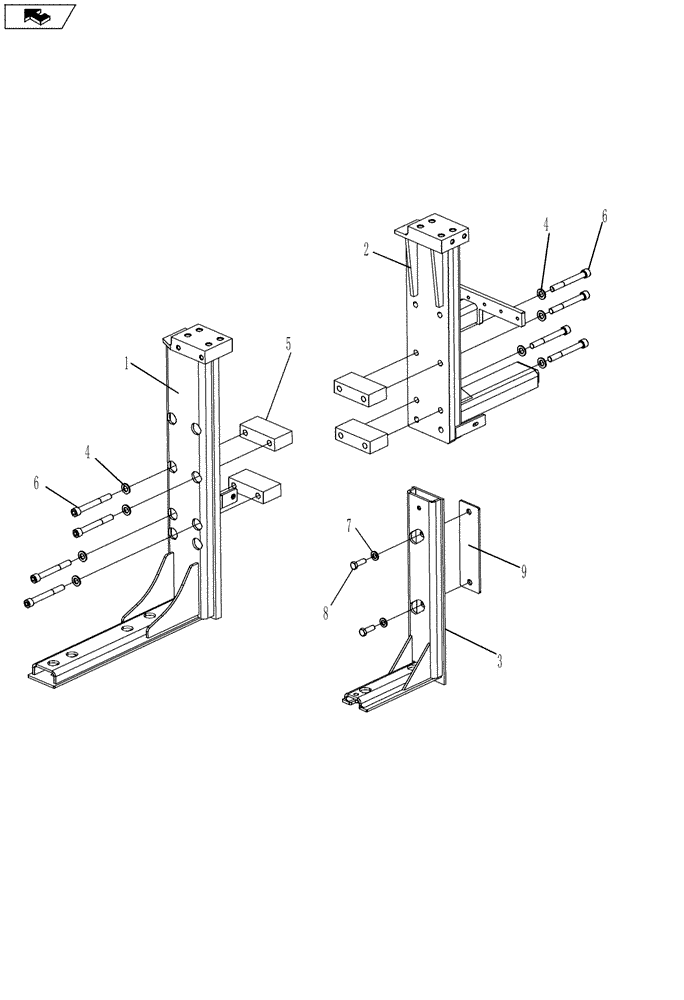

Схема запчастей Case IH MAGNUM 190 - (90.150.04) - FRONT ISOMOUNTS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
1
8
4
6
2
6
home
3
7
9
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84123200

PLATE

Left Hand

1шт.

2

84142725

PLATE

Right hand

1шт.

3

87496282

SUPPORT

Fuel Tank

1шт.

4

14496831

WASHER,15mm ID x 28mm OD x 2.5mm Thk

8шт.

5

87731266

SPACER

2шт.

6

87733388

HEX SOC SCREW,M14 x 1.5 x 100mm, Cl 10.9

8шт.

7

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

8

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.
