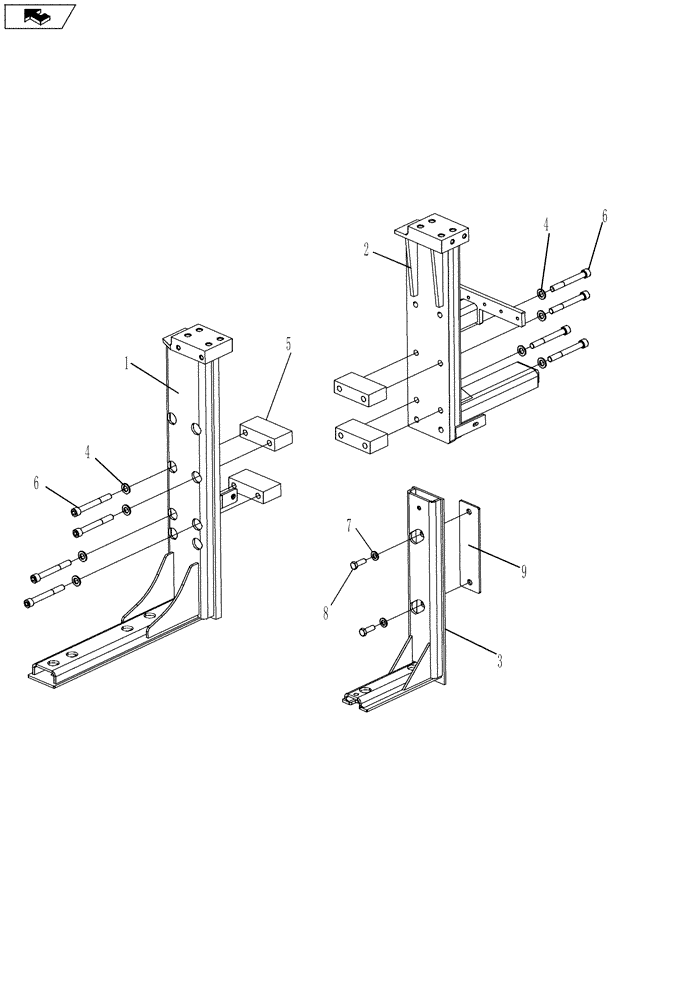

Запчасти Case IH MAGNUM 190 (90.150.03) - FRONT ISOMOUNTS, WITH POWERSHIFT TRANSMISSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84123200

PLATE

Left Hand

1шт.

2

84142725

PLATE

Right hand

1шт.

3

87496282

SUPPORT

Fuel Tank

1шт.

4

14496831

WASHER,15mm ID x 28mm OD x 2.5mm Thk

8шт.

5

87731264

SPACER

4шт.

6

87733389

HEX SOC SCREW,M14 x 1.5 x 120mm, Cl 10.9

8шт.

7

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

8

86637970

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

9

87731261

SPACER

1шт.
