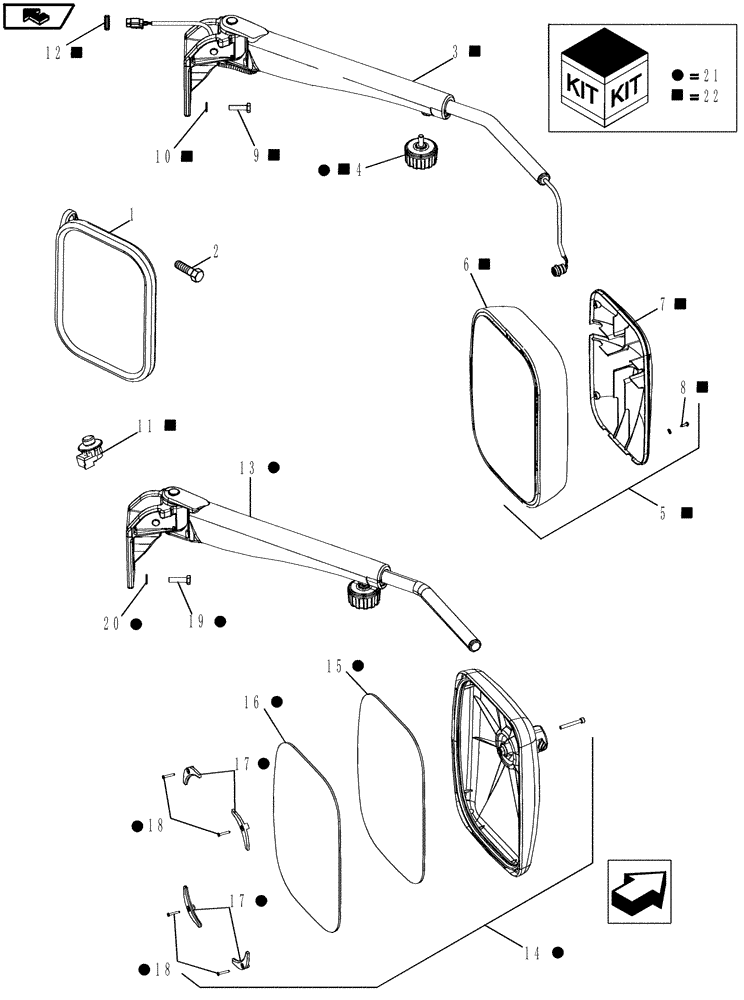

Запчасти Case IH MAGNUM 190 (90.118.01) - MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

82036480

MIRROR

Interior

1шт.

2

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

2шт.

3

87350490

SUPPORT ASSY.

Right Hand, Remote Control, Inc. 4 (Shown)

1шт.

3

87350491

MIRROR ARM

Left Hand, Remote Control, Inc. 4

1шт.

4

87365131

KNOB

1шт.

5

87350492

RH MIRROR,238mm x 328mm

Right Hand Remote Control, Inc. 6, 7 (Shown)

1шт.

5

87350493

LH MIRROR,238mm x 328mm

Left Hand Remote Control, Inc. 6, 7

1шт.

6

87531093

REPLACEMENT MIRROR

1шт.

7

87531075

COVER

Right Hand (Shown)

1шт.

7

87578865

COVER

Left hand

1шт.

8

760-17113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

8шт.

9

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

6шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

11

280627A1

SWITCH, MIRROR ADJUS

Remote Control

1шт.

12

182045A1

GROMMET

Use with Power Mirrors

2шт.

12

280628A1

PLUG

Use Without Power Mirrors (Not Shown)

2шт.

13

87350488

SUPPORT

Right Hand, Manual, Inc. 4 (Shown)

1шт.

13

87350489

MIRROR ARM

Left Hand, Manual, Inc. 4

1шт.

14

87350494

MIRROR ASSY.,240mm x 329mm

Manual, Inc. 15 - 18

2шт.

15

324437A1

REPLACEMENT MIRROR

1шт.

16

82035218

MIRROR,300mm x 200mm

Lens, Acrylic

1шт.

17

87531094

BRACKET

Manual, Mirror head

4шт.

18

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.

19

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

6шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

21

719610006

DIA KIT, TRACTOR

Manual Mirrors, Inc. 4, 13 - 20

1шт.

22

719611006

DIA KIT, TRACTOR

Power Mirrors, Inc. 3 - 12

1шт.
