Запчасти Case IH MAGNUM 190 (90.116.02[01]) - FENDERS, FRONT, NARROW (90) - PLATFORM, CAB, BODYWORK AND DECALS

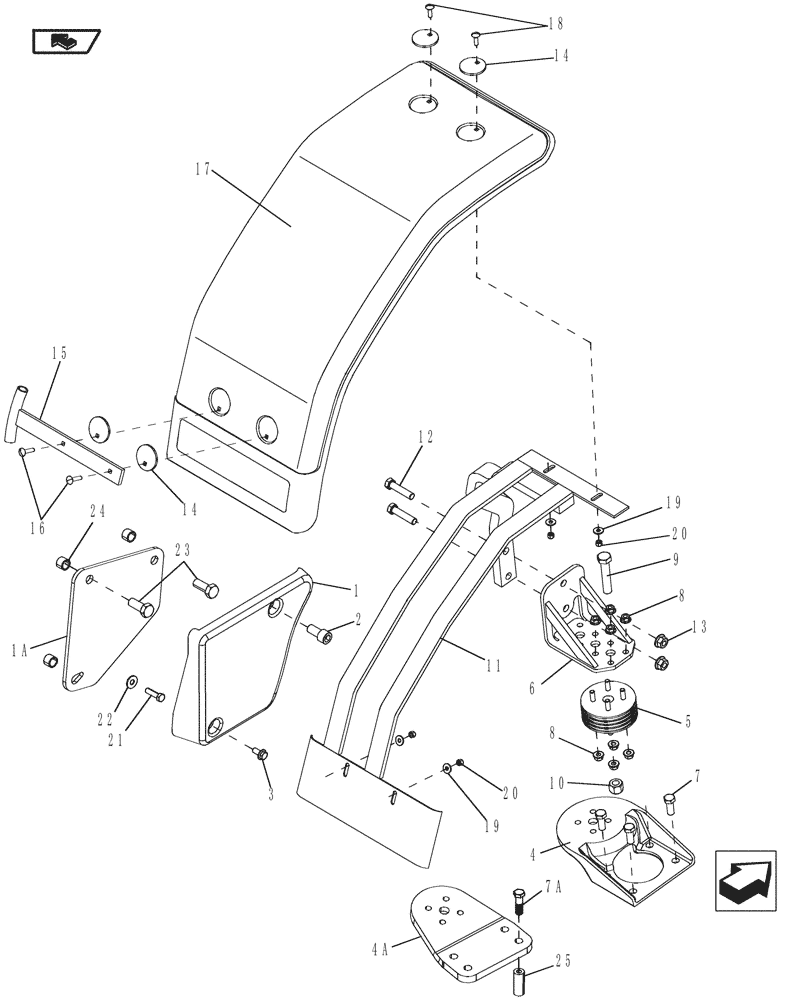

Схема запчастей Case IH MAGNUM 190 - (90.116.02[01]) - FENDERS, FRONT, NARROW (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
19
12
11
6
9
1a
5
7a
18
4a
7
25
14
1
17
20
8
21
14
10
2
8
20
13
16
4
3
22
19
24
23

Артикул

Название

Примечание

Количество

1

253850A1

BUMPER

Flex Fender, Right Side, If Used

1шт.

1

255685A1

BUMPER

Flex Fender, Left Side (Not Shown) If Used

1шт.

1a

84127470

PAD

Fender Stop, If Used

2шт.

2

565-111

SCREW,M20 x 40mm, Cl 8.8

If Used

2шт.

3

555-6

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

If Used

2шт.

4

87530576

SUPPORT

Bracket Fender

2шт.

4a

84275961

BRACKET, SUPPORTING

2шт.

5

226690A2

RUBBER BUMPER

Isolator Fender Mount

2шт.

6

87427813

SUPPORT

Upper Fender

2шт.

7

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

8шт.

7a

43281

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

8шт.

8

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

16шт.

9

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

2шт.

10

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

11

244759A2

SUPPORT ASSY.

Fender, Right

1шт.

11

244760A2

SUPPORT ASSY.

Fender, Left (Not Shown)

1шт.

12

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

13

825-51416

FLANGE NUT,Flg, M16, Serr

4шт.

14

1340559C2

SQ HOLE WASHER,8.71mm ID x 63.5mm OD x 4.76mm Thk

8шт.

15

87319913

BAR

Weld Fender Stop

2шт.

16

612-7

CARRIAGE BOLT,M8 x 40mm, Class 4.6

4шт.

17

1340664C1

FENDER

Front, Small

2шт.

18

612-6

CARRIAGE BOLT,M8 x 30mm, Class 4.6

4шт.

19

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

21

120080

BOLT,Hex, M12 x 45, 8.8

If Used

2шт.

22

495-21050

WASHER,7/16"

If Used

2шт.

23

9847023

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

If Used

4шт.

24

87036419

SPACER,26.64mm ID x 33.4mm OD x 19.05mm L

If Used

6шт.

25

84249768

SPACER

8шт.

Выбрано товаров: 30
