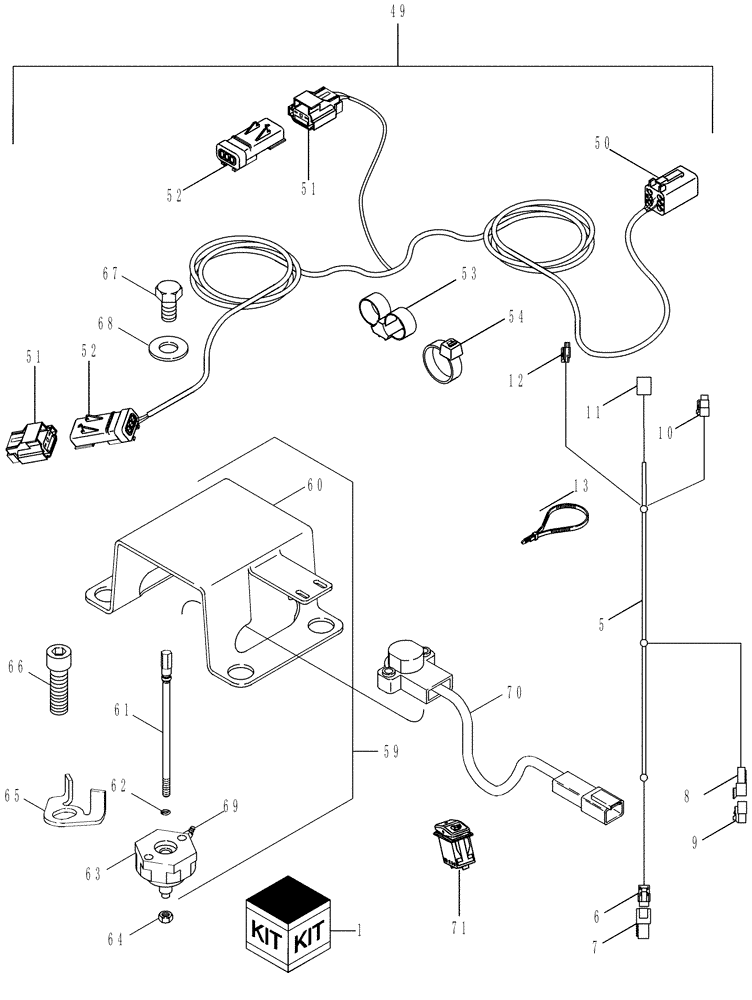

Запчасти Case IH MAGNUM 190 (55.640.12[01]) - DIA KIT, AUTOGUIDANCE (55) - ELECTRICAL SYSTEMS

1

84225238

DIA KIT, TRACTOR

Autoguidance, Inc. 5 - 13, 49 - 54, 59 - 71

1шт.

5

84159487

HARNESS

Antenna, GPS, Inc. 6 - 12

1шт.

6

223671A1

CONTACT HOUSING,Female, 12 Pin

GPS Antenna

1шт.

7

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

Cavity Plug

1шт.

8

225294C1

ELEC CONNECTOR,Male, 3 Pin

Passive Terminator

1шт.

9

381414A1

TERMINAL CONNECTOR

Cavity Plug

1шт.

10

277904A1

ELEC CONNECTOR,Female, 4 Pin

Outside Autoguidance Harness

1шт.

11

87694153

CONTACT HOUSING,Female, 4 Cavities

Chassis or Midmount Valve Harness

1шт.

12

222135A1

CONNECTOR, ELEC

CONNECTOR Outside Autoguidance Harness

1шт.

13

86991009

CABLE TIE,222mm L, Nylon

CABLE STRAP

10шт.

49

84154376

HARNESS

Steering Sensor, Inc. 50 - 52

1шт.

50

225351C1

ELEC CONNECTOR,Female, 6 Pin

1шт.

51

87382910

WIRE CONNECTOR,Female, 3 Cavities

1шт.

52

87382911

WIRE CONNECTOR,Male, 3 Cavities

1шт.

53

86991000

CLAMP

5шт.

54

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

14шт.

59

87311994

KIT

King Pin, Inc. 60 - 69

1шт.

60

87308126

COVER

1шт.

61

87307819

SHAFT

1шт.

62

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

1шт.

63

87307822

MOUNTING PARTS,M5 x 0.8

Cap Assembly

1шт.

64

832-10406

NUT,M6 x 1, Cl 8

1шт.

65

87307821

LOCK WASHER

1шт.

66

863-14045

HEX SOC SCREW,M14 x 45mm, Cl 12.9

1шт.

67

614-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 8.8, Full Thd

4шт.

68

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

69

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

70

87524642

SENSOR

Steering Angle

1шт.

71

87711789

AUTO GUIDANCE DISENG

1шт.
