(55.100.13) - ELECTRIC SYSTEM CONTROL, WITH CONTINUOUSLY VARIABLE TRANSMISSION

Запчасти Case IH MAGNUM 190 (55.100.13) - ELECTRIC SYSTEM CONTROL, WITH CONTINUOUSLY VARIABLE TRANSMISSION (55) - ELECTRICAL SYSTEMS

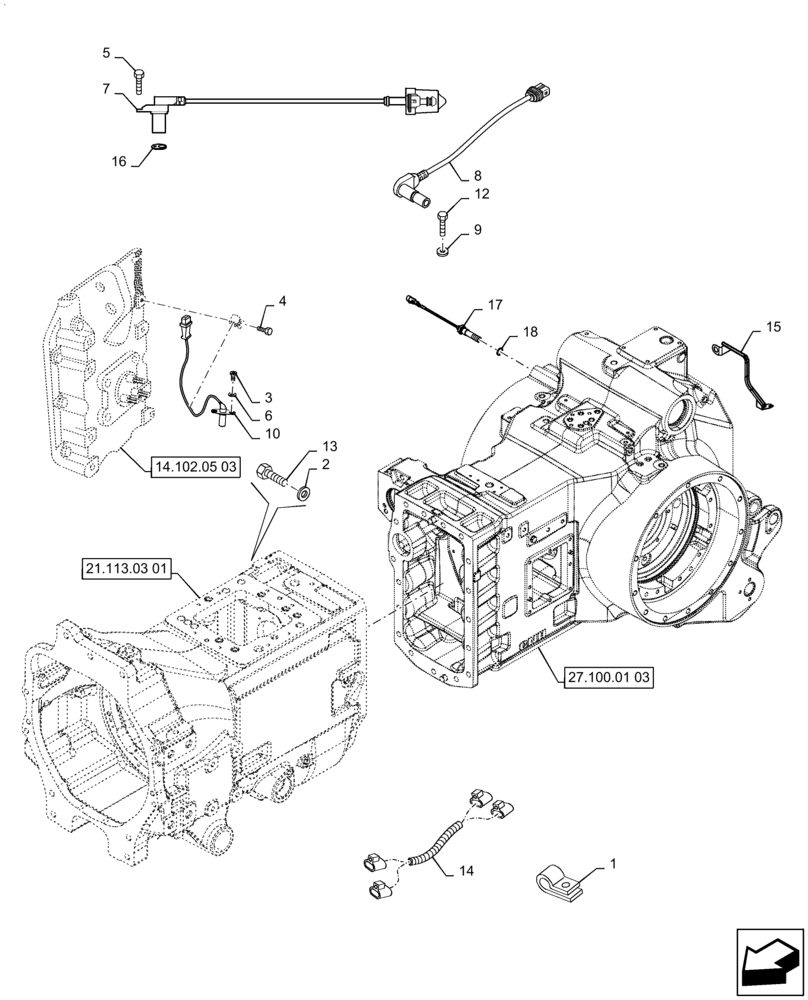

Схема запчастей Case IH MAGNUM 190 - (55.100.13) - ELECTRIC SYSTEM CONTROL, WITH CONTINUOUSLY VARIABLE TRANSMISSION (55) - ELECTRICAL SYSTEMS
14.102.05 03
14
15
4
18
2
8
7
1
6
5
12
3
9
21.113.03 01
16
27.100.01 03
17
10
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

81866030

CLIP

2шт.

2

12605271

WASHER

2шт.

3

10977724

BOLT,M5 x 14.00mm, Cl 8.8, DAC

2шт.

4

16207524

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

6

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

7

84169162

SENSOR

Speed, Hall Effect, Rotational, Length 27.9mm

1шт.

8

87564761

SENSOR

Speed, Length 56mm

3шт.

9

12605379

LOCK WASHER

3шт.

10

87586073

SENSOR

PTO Speed, STD

1шт.

11

82851791

PLUG

Not Illustrated

1шт.

12

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

5шт.

13

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

4шт.

14

87386975

WIRE HARNESS

HPL Pump (Closed Ctr)

1шт.

15

87624045

TUBE

PTO Wire Protection Channel

1шт.

16

87498777

SPACER

1шт.

17

87487876

SENSOR

PTO Twist

1шт.

18

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

PTO Twist Sensor

1шт.
