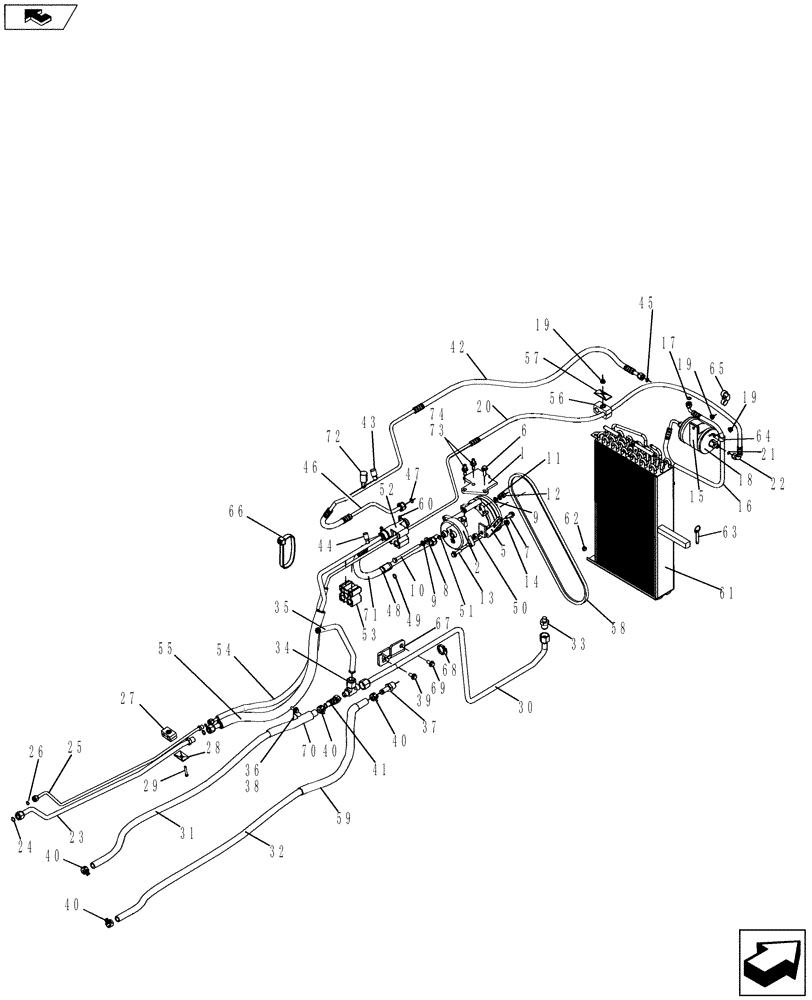

Запчасти Case IH MAGNUM 190 (50.200.08) - AIR CONDITIONING, CONDENSER (50) - CAB CLIMATE CONTROL

1

84170869

BRACKET

Air Conditioning Compressor

1шт.

2

86993462

AIRCOND. COMPRESSOR

12V Double Groove, Inc. 3 - 4

1шт.

2

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

2

86993462R

REMAN-COMPRESSOR

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225

1шт.

2

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

2

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

2

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

2

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

2

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

3

135324A2

CLUTCH

(Not Shown)

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

(Not Shown)

1шт.

5

NSS

NOT SOLD SEPARAT

BRACKET, Air Conditioning Compressor Adjusting

1шт.

6

854-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 10.9

3шт.

7

854-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

1шт.

8

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

10

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

1шт.

11

892-11010

LOCK WASHER,M10

1шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

13

854-10035

BOLT,Hvy Hex, M10 x 35mm, Cl 10.9

1шт.

14

829-2310

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

15

87361944

CLAMP

Receiver/Dryer

1шт.

16

87312057

A/C HOSE,7.9mm ID x 864mm L

Liquid Condensor to Dryer, Inc. 17

1шт.

17

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

18

295006A1

RECEIVER-DRYER

1шт.

19

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

20

84179863

A/C HOSE,7.90 mm ID x 1584.00 mm

Liquid Chassis, Inc. 21 - 22

1шт.

21

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

22

414223A1

FITTING

Straight Swivel 5/16 Long

1шт.

23

87377036

HOSE ASSY.

Suction Cab, Inc. 24

1шт.

24

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

25

87377035

HOSE ASSY.

Liquid Cab, Inc. 26

1шт.

26

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

27

428385A1

SPECIAL CLAMP

Hydraulic Tube

1шт.

28

384870A1

PLATE

Hose Clamp Cover

1шт.

29

779-14645

SELF-TAP SCREW,Hex, M6.3 x 1.8 x 45mm

1шт.

30

84182848

HEATER TUBE,0.75" OD

Heater Return

1шт.

31

3401766R2

HEATER HOSE,15.50 mm ID x 1656.00 mm

Heater Return

1шт.

32

436520A1

HEATER HOSE,15.88 mm ID x 1778.00 mm

Basic Heater Supply

1шт.

33

87742365

REDUCER

37FL 3/4 Tube x 3/8 NPTF

1шт.

34

87303737

TEE,1 1/16"-12, 37 Degree x 7/8"-14, 37 Degree Run

1шт.

35

87751171

TUBE,.75" OD

Deaeration

1шт.

36

470375C1

CLAMP,1", Insul, 3/8" Bolt

Medium Duty, If Used

1шт.

37

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

1шт.

38

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

If Used

1шт.

39

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

40

1954736C1

HOSE CLAMP,#24

Heater

4шт.

41

87753805

SHUT-OFF VALVE

Needle, Inline

1шт.

42

84195115

A/C HOSE

Compressor to Condensor, Inc. 45 - 47

1шт.

43

414080A1

CAP,M10 x 0.75 x 22.35mm L, Black

High Pressure Flow Side

1шт.

44

414081A1

CAP,M8 x 1 x 17.3mm OD x 21.1mm L

Low Pressure Flow Side

1шт.

45

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

46

NSS

NOT SOLD SEPARAT

TUBE, Compressor Discharge, Inc. 47

1шт.

47

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

48

84128502

A/C HOSE

Evaporator to Compressor, Inc. 49 - 51

1шт.

49

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

50

1250592C1

PIPE UNION NUT

1шт.

51

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

52

87750695

CLAMP

Tube Support

1шт.

53

87755276

CLAMP

Tube Support

1шт.

54

435562A1

CONDUIT

Fuel, Injection Pump to Cooler

1шт.

55

87755355

CONDUIT

High Vacuum Air Conditioning Hose

1шт.

56

124668A1

CLAMP

Hydraulic Tube

1шт.

57

1347127C1

PLATE

Hose Clamp

1шт.

58

87489502

V-BELT,12.7mm W

Air Conditioning Compressor

1шт.

59

87350913

CONDUIT

1шт.

60

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

61

87360035

CONDENSER

Cooler Combo, Condensor and Fuel

1шт.

62

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

63

86017630

HITCH PIN,9.53mm OD x 50.55mm L

Detent Ring

1шт.

64

516-22158

CLAMP,J, 11/16" Insul, 5/16" Bolt

1шт.

65

86991000

CLAMP

Tie Dual

1шт.

66

86991007

CABLE TIE,509mm L

1шт.

67

84183467

BRACKET

1шт.

68

183823C1

CLAMP

1шт.

69

844-6050

BOLT,Hvy Hex, M6 x 50mm, Cl 8.8

1шт.

70

87350913

CONDUIT

1шт.

71

84228376

CONDUIT

1шт.

72

284273A2

SWITCH, A/C HIGH PRE

1шт.

73

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

2шт.

74

84196964

STUD

2шт.
