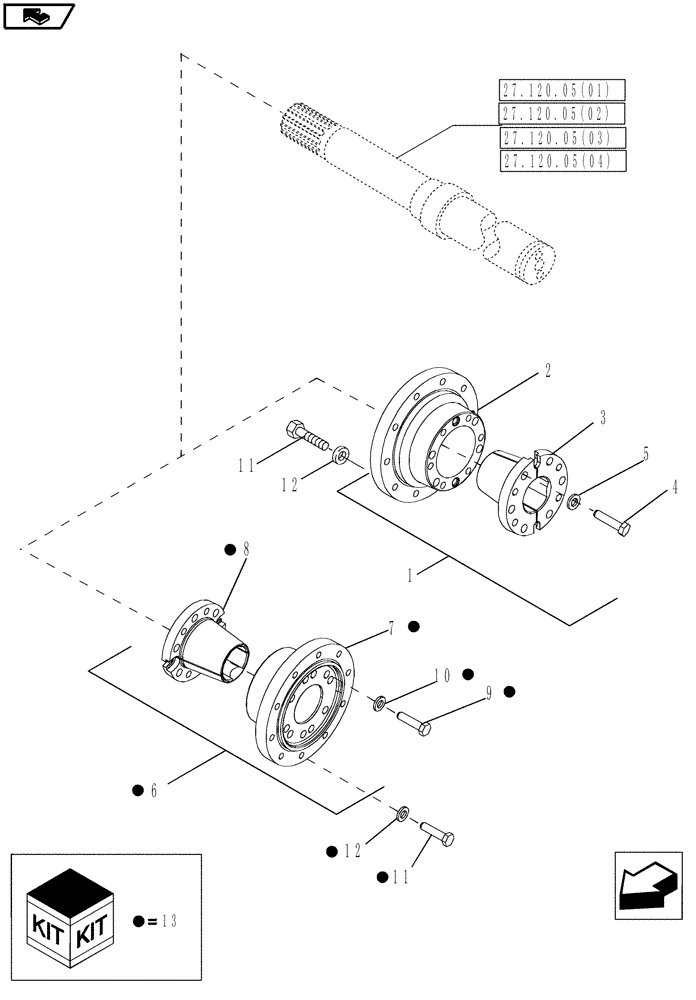

Запчасти Case IH MAGNUM 190 (44.100.01) - HUB ASSEMBLY, REAR WHEELS WITH DOUBLE FLAT SHAFT (44) - WHEELS

1

87492894

HUB

Assembly, Single Wheel, Inc. 2 - 5

2шт.

2

87473335

HUB

1шт.

3

87645102

WEDGE,Lock, Silver

1шт.

4

87688508

BOLT,Hex, M22 x 2.5 x 90mm, Cl 8.8

6шт.

5

9845587

WASHER,23.8mm ID x 44.5mm OD x 6.4mm Thk

6шт.

6

87492895

HUB

Assembly, Inc. 7 - 10

2шт.

6

87492895

HUB

Assembly, Dual Wheels, Inc. 7 - 10

4шт.

7

87473335

HUB

1шт.

8

87645102

WEDGE,Lock, Silver

1шт.

9

87688509

BOLT,Hex, M22 x 2.5 x 190mm

4шт.

10

9845587

WASHER,23.8mm ID x 44.5mm OD x 6.4mm Thk

4шт.

11

86643888

BOLT,Hex, M22 x 60mm, Cl 10.9

20шт.

12

9845587

WASHER,23.8mm ID x 44.5mm OD x 6.4mm Thk

20шт.

13

719677016

DIA KIT, TRACTOR

Dual Wheel Hub Assembly (Qty 2), Inc. 6 - 12

1шт.
