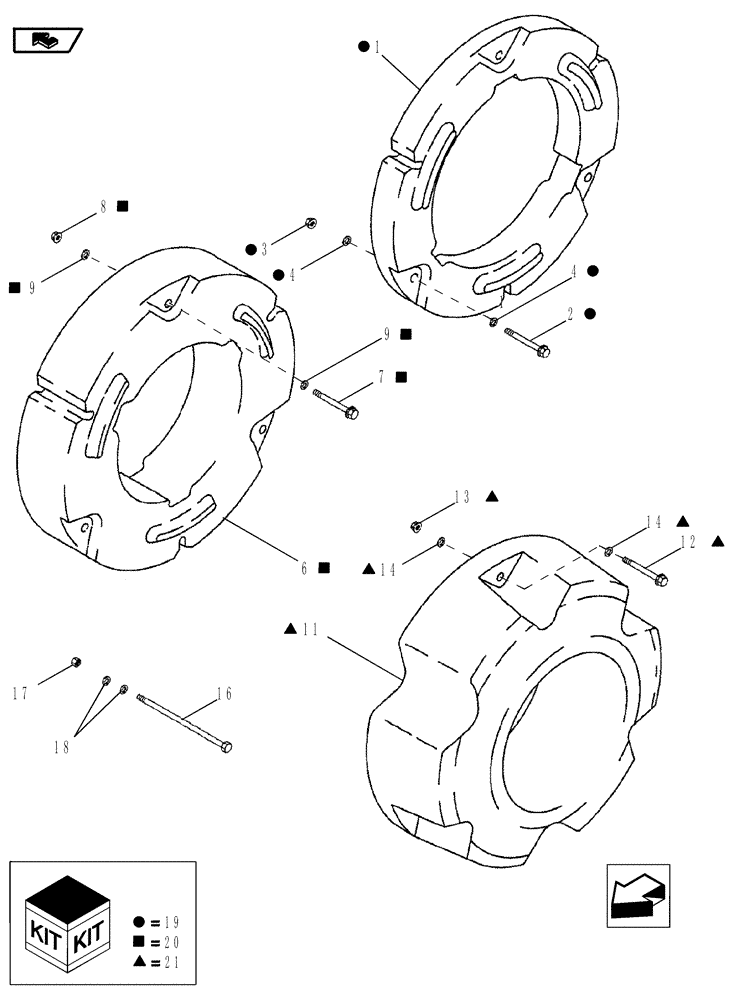

Запчасти Case IH MAGNUM 190 (37.140.15) - REAR WHEEL WEIGHTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

405828A1

WHEEL WEIGHT

Wheel, 200 lb

2шт.

2

87393412

BOLT,Hex, M16 x 130mm, Cl 10.9

M16 x 130; 10.9

6шт.

3

832-10416

NUT,M16 x 2, Cl 8

6шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

6

87310406

WHEEL WEIGHT

500 lb

2шт.

6

87310406

WHEEL WEIGHT

500 lb

4шт.

7

87393412

BOLT,Hex, M16 x 130mm, Cl 10.9

M16 x 130; 10.9

6шт.

7

87393412

BOLT,Hex, M16 x 130mm, Cl 10.9

12шт.

8

832-10416

NUT,M16 x 2, Cl 8

6шт.

8

832-10416

NUT,M16 x 2, Cl 8

12шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

11

405830A1

WEIGHT

Wheel, 1000 lb

2шт.

12

87393412

BOLT,Hex, M16 x 130mm, Cl 10.9

M16 x 130; 10.9

6шт.

13

832-10416

NUT,M16 x 2, Cl 8

6шт.

14

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

16

87361584

BOLT

M16 x 140; 10.9

6шт.

16

86639152

BOLT,Hex, M16 x 200mm, Cl 10.9

If Required

6шт.

17

832-10416

NUT,M16 x 2, Cl 8

12шт.

18

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

12шт.

19

719672006

DIA KIT, TRACTOR

Rear Wheel Weights, 1 Pair, 200 lb, Inc. 1 - 4

1шт.

20

719673006

DIA KIT, TRACTOR

Rear Wheel Weights, 1 Pair, 500 lb, Inc. 6 - 9

1шт.

21

719674006

DIA KIT, TRACTOR

Rear Wheel Weights, 1 Pair, 1000 lb, Inc. 11 - 14

1шт.
