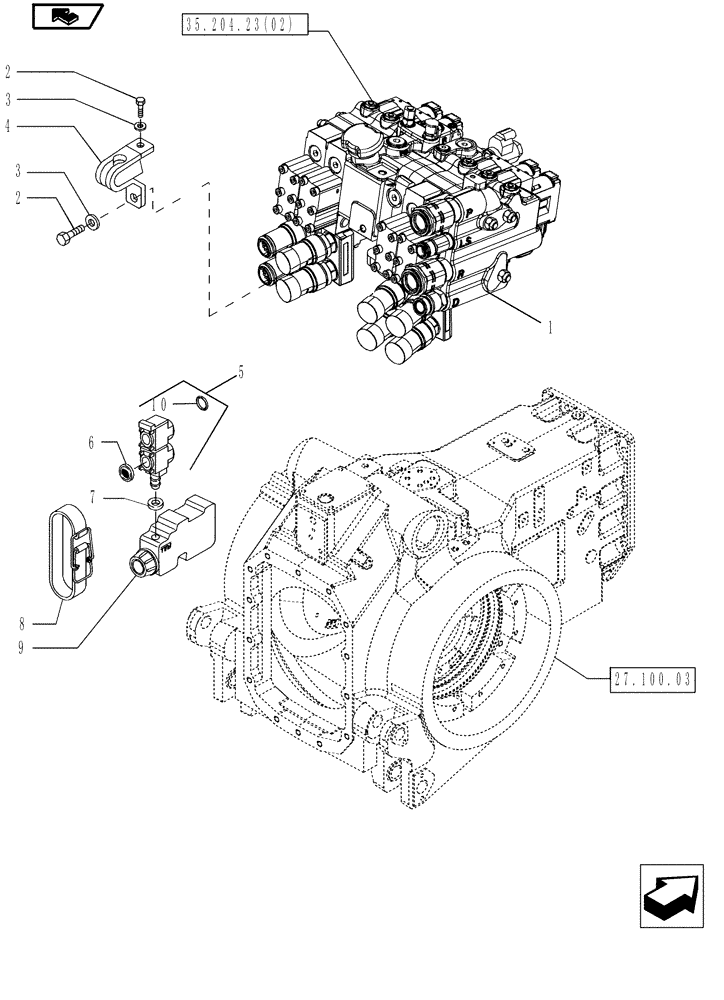

Запчасти Case IH MAGNUM 190 (35.700.02[02]) - REMOTE VALVE SPILLAGE COLLECTION WITH 4 ELEMENTS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (35) - HYDRAULIC SYSTEMS

1

84158331

CONTROL VALVE

4 Stack Coupler with Power Beyond

1шт.

2

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

4

87352315

BRACKET

1шт.

5

82033220

DUST CAP

Inc. 10

4шт.

6

82029895

DISC,20mm D, Black

8шт.

7

82029356

SEAL,20.00mm OD x 3.00mm

4шт.

8

82032061

CLIP

4шт.

9

47922580

BOTTLE

4шт.

10

14454580

O-RING,34.65mm ID x 1.78mm

(34.65 ID x 1.78 Thk)

2шт.
