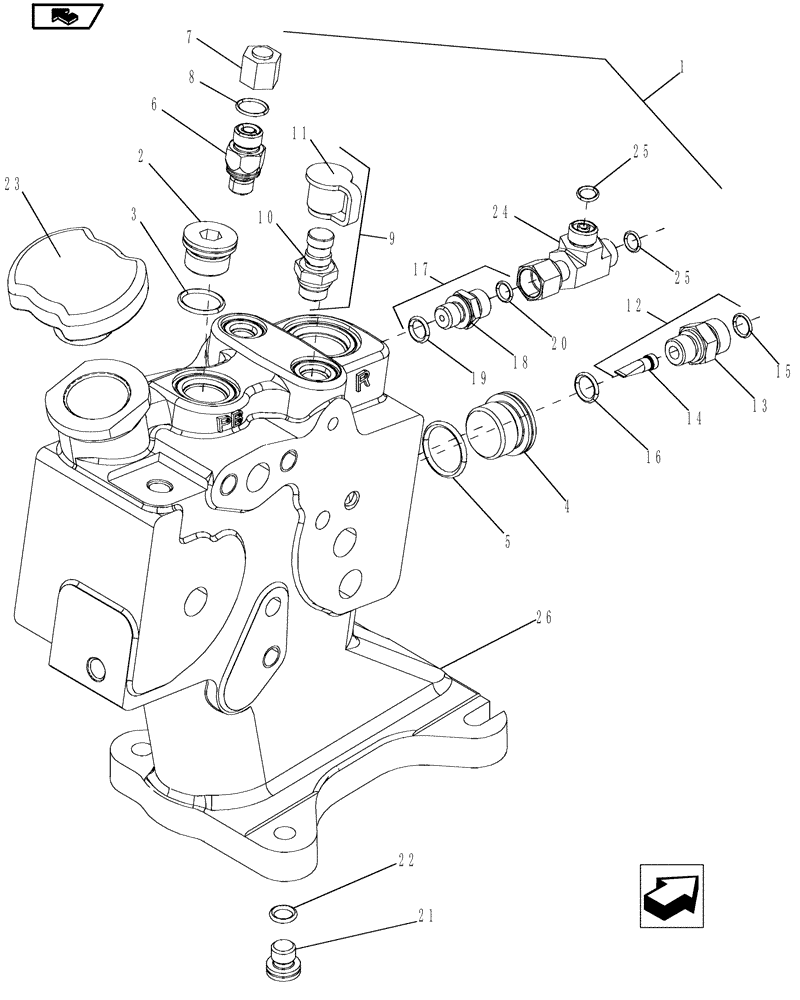

Запчасти Case IH MAGNUM 190 (35.310.09) - MANIFOLD VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

87555868

MANIFOLD VALVE

ASSY, Inc. 2 - 26

1шт.

2

221579A1

PLUG,M22 x 1.5 ORB

Inc. 3

1шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

221580A1

PLUG,M27 x 2 ORB

Inc. 5

1шт.

5

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

6

87551023

CHECK VALVE

Check, Inc. O-Rings

1шт.

7

701-917

CAP,Hex, 9/16" - 18 Female ORFS

Inc. 8

1шт.

8

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

FITTING, Diagnostic

1шт.

11

NSS

NOT SOLD SEPARAT

DUST, Cap

1шт.

12

334923A1

HYD CONNECTOR,M14 x 1.5 ORB x 11/16" - 16 ORFS

Pump Comp 44 GPM Hydraulic Oil, Inc. 13 - 16

1шт.

13

334925A1

FITTING

1шт.

14

NSS

NOT SOLD SEPARAT

SCREEN, Pump Compensator

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

17

87399910

FITTING

Signal Orifice, Inc. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

FITTING, Signal Orifice

1шт.

19

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

1шт.

22

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

23

82005372

FILLER CAP,Male, Vented_No Lockable

Cap Assembly Oil Filler Transmission

1шт.

24

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Inc. 25

1шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

26

NSS

NOT SOLD SEPARAT

BODY, Manifold Inlet/Outlet

1шт.
