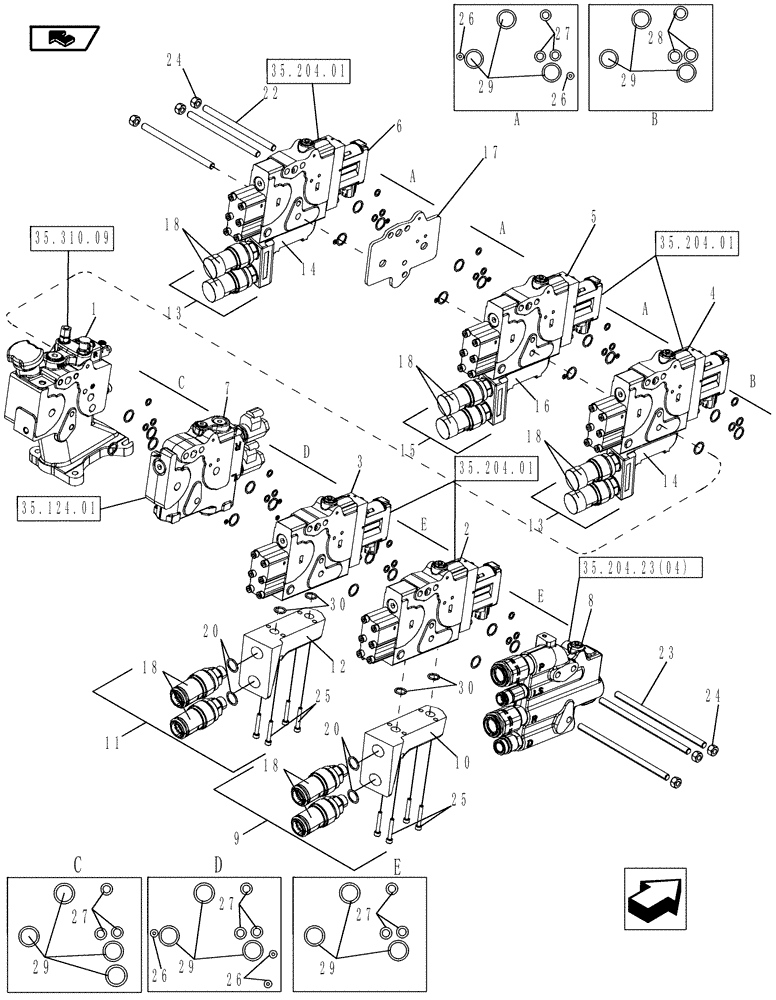

Запчасти Case IH MAGNUM 190 (35.204.23[03]) - REMOTE HYDRAULIC VALVE 5 STACK (35) - HYDRAULIC SYSTEMS

1

87555868

MANIFOLD VALVE

Inlet/Outlet

1шт.

2

87330385

HYD VALVE SECTION

Right, without Power Beyond

1шт.

2

87330385R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225

1шт.

2

87330385C

CORE-VALVE HYD

Return Number

1шт.

2

87325955

HYD VALVE SECTION

Main, with Power beyond

1шт.

2

47434171R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225, All TRACTOR (NA), Reman for New PN 87325955

1шт.

2

47434171C

CORE-VALVE HYD

Return Number

1шт.

3

87325955

HYD VALVE SECTION

Main

1шт.

3

47434171R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225, All TRACTOR (NA), Reman for New PN 87325955

1шт.

3

47434171C

CORE-VALVE HYD

Return Number

1шт.

4

87325955

HYD VALVE SECTION

Main

1шт.

4

47434171R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225, All TRACTOR (NA), Reman for New PN 87325955

1шт.

4

47434171C

CORE-VALVE HYD

Return Number

1шт.

5

87325955

HYD VALVE SECTION

Main

1шт.

5

87325955R

REMAN-HYD VALVE

MAGNUM 180,MAGNUM 190,MAGNUM 210,MAGNUM 225

1шт.

5

87325955C

CORE-VALVE HYD

Return Number

1шт.

6

87330318

HYD VALVE SECTION

Left

1шт.

6

87330318R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225 all REMOTE HYDRAULIC VALVE 5 STACK

1шт.

6

87330318C

CORE-VALVE HYD

Return Number

1шт.

7

87331245

VALVE SECTION

Hitch

1шт.

7

47434177R

REMAN-HYD VALVE

Reman For New P/N 87331245, Hitch

1шт.

7

47434177C

CORE-VALVE HYD

Return Part Number

1шт.

8

84158051

HYD VALVE SECTION

Power Beyond

1шт.

9

87381981

HYDRAULIC MANIFOLD

Inc. 10, 18

1шт.

10

NSS

NOT SOLD SEPARAT

QUICK COUPLER

1шт.

11

87381982

HYDRAULIC MANIFOLD

Inc. 12, 18

1шт.

12

NSS

NOT SOLD SEPARAT

QUICK COUPLER

1шт.

13

87381983

HYDRAULIC MANIFOLD

Inc. 14, 18

1шт.

14

NSS

NOT SOLD SEPARAT

QUICK COUPLER

1шт.

15

87596458

HYDRAULIC MANIFOLD

Inc. 16, 18

2шт.

16

87599844

MANIFOLD VALVE

1шт.

17

87340783

PLATE

1шт.

18

87381944

COUPLING, QUICK, FEM

Inc. 20 - 21

1шт.

19

87382012

SEAL KIT

Inc. 20 - 21

1шт.

20

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

21

NSS

NOT SOLD SEPARAT

BACKUP RING

1шт.

22

87604618

STUD,M12 x 1.75 x 185mm

M12 x 1.75 Length, 185 mm

3шт.

23

87604618

STUD,M12 x 1.75 x 185mm

M12 x 1.75 Length 185 mm, Without Power Beyond

3шт.

23

87604617

STUD,M12 x 1.75 x 235mm L

M12 x 1.75 Length 235 mm, With Power Beyond

3шт.

24

829-1312

NUT,M12 x 1.75, Cl 10

6шт.

25

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

20шт.

26

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

9шт.

27

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

21шт.

28

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

3шт.

29

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

25шт.

30

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

10шт.
