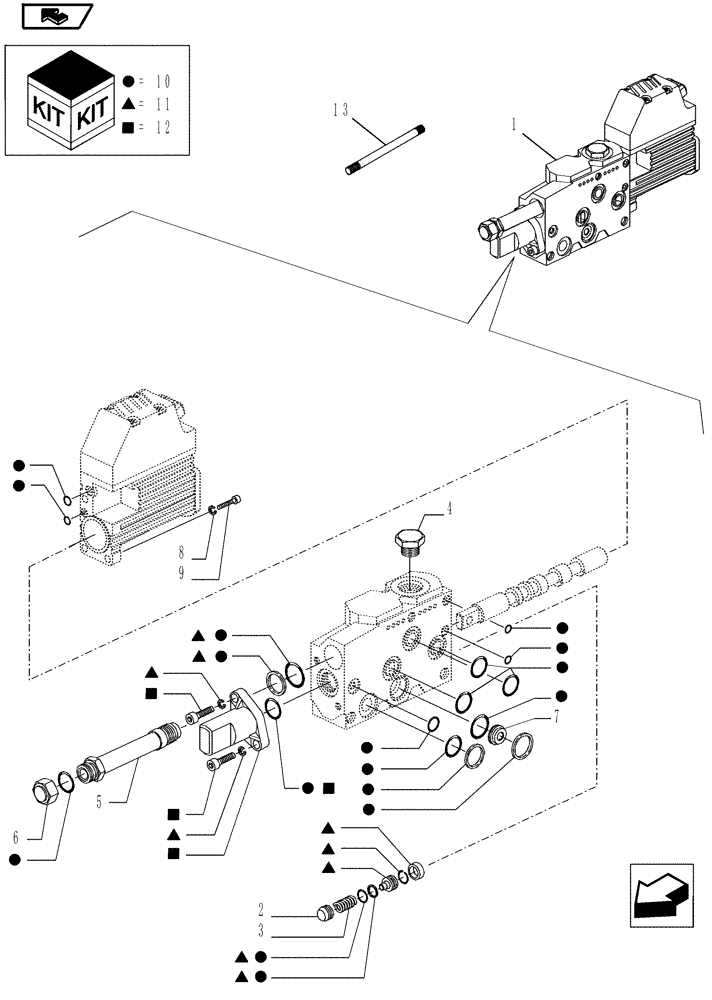

Запчасти Case IH MAGNUM 190 (35.138.01[04]) - VALVE CONTROL, BREAK DOWN (35) - HYDRAULIC SYSTEMS

1

84214463

ELECTRO-VALVE

ASSY, Inc. 2 - 12

1шт.

84214463R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225

1шт.

84214463C

CORE-VALVE HYD

Return Number

1шт.

84214463C

CORE-VALVE HYD

CORE-HYD VALVE Return Number, VALVE, SINGLE SLICE MMV - for N.A. Only

1шт.

2

87744118

CONE

1шт.

3

87744124

COMPRESSION SPRING

1шт.

4

10119411

PLUG,M18 x 1.5 x 12.00mm

1шт.

5

87743455

HYD CONNECTOR

1шт.

6

82031950

PLUG

1шт.

7

87743494

POPPET

1шт.

8

5191783

SPRING WASHER

3шт.

9

47127008

SCREW

3шт.

10

87743496

SEAL KIT

1шт.

11

87744117

SERVICE KIT

1шт.

12

87743514

KIT

1шт.

13

87520006

TIE-ROD

For 3 Slice

3шт.

13

87371933

TIE-ROD

For 4 Slice

3шт.
