Запчасти Case IH MAGNUM 190 (35.130.03) - ROCKSHAFT POSITION SENSOR & HARNESS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (35) - HYDRAULIC SYSTEMS

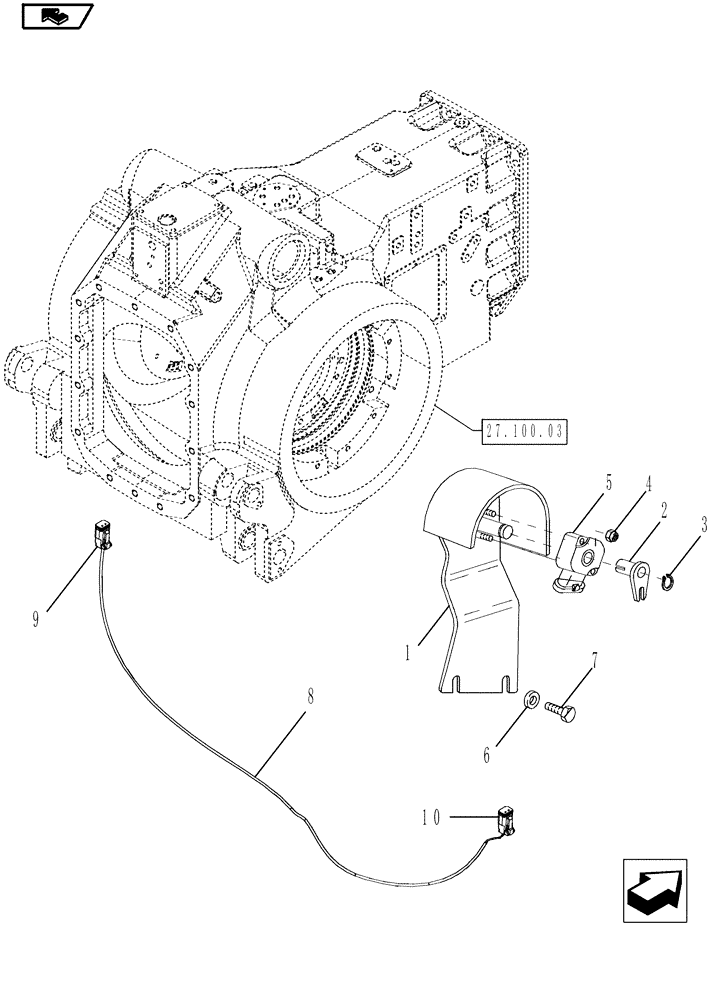

Схема запчастей Case IH MAGNUM 190 - (35.130.03) - ROCKSHAFT POSITION SENSOR & HARNESS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (35) - HYDRAULIC SYSTEMS
home
8
3
4
5
2
1
9
6
7
10
27.100.03

Артикул

Название

Примечание

Количество

1

87378585

SUPPORT

1шт.

2

47129141

LEVER

1шт.

3

11087974

CIRCLIP,Ext., M8, DAC

1шт.

4

14048511

NUT,M4 x .7, Cl 8

2шт.

5

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

1шт.

6

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

7

15970611

BOLT,Hex, M10 x 1.25 x 22mm, Cl 5.8, Full Thd

2шт.

8

84188905

HARNESS

Inc. 9, 10

1шт.

9

84146691

MULTIPOLE CONNECTOR,Male, 5 Pole

1шт.

10

87691304

WIRE CONNECTOR,Female

1шт.

Выбрано товаров: 10
