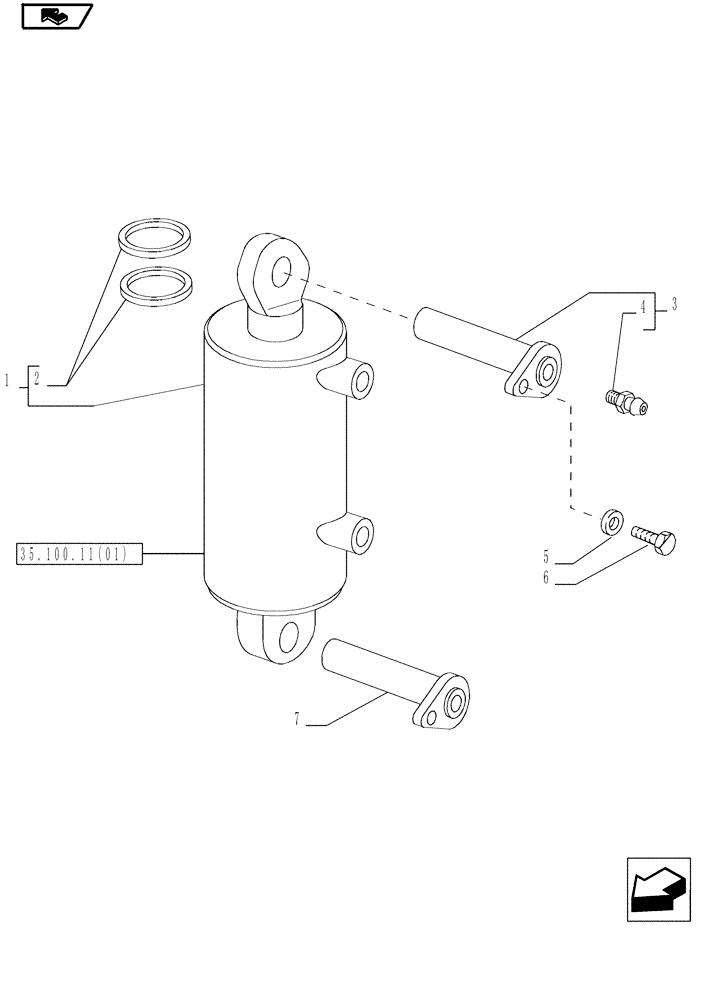

Запчасти Case IH MAGNUM 190 (35.100.03[01]) - HYDRAULIC POWER LIFT WITH 2 (90 MM) EXTERNAL CYLINDERS, CYLINDER AND PINS (35) - HYDRAULIC SYSTEMS

1

47136721

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 200mm Stroke

ASSY, 90 mm

2шт.

2

47137616

SEAL KIT

1шт.

3

5186171

PIN

ASSY, Inc. 4

2шт.

4

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

1шт.

5

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

6

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

4шт.

7

5185964

PIN,34.7mm OD x 132mm L

2шт.
