Запчасти Case IH MAGNUM 190 (33.220.06) - DIA KIT, HYDRAULIC TRAILER BRAKE, WITH CONTINUOUSLY VARIABLE TRANSMISSION (33) - BRAKES & CONTROLS

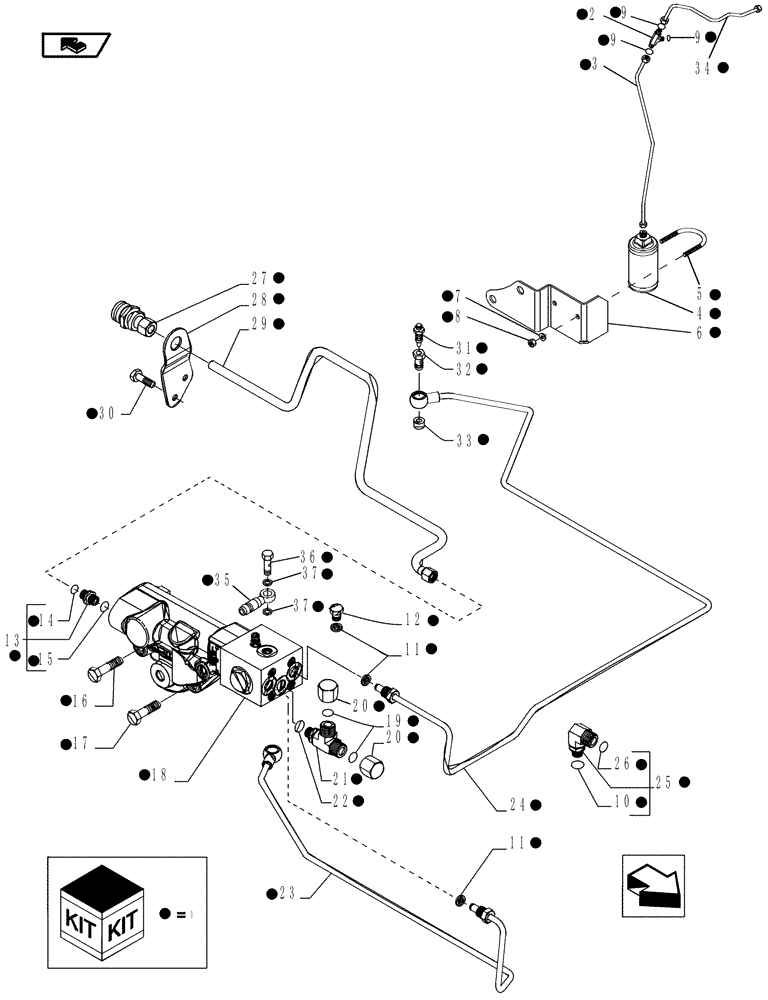

Схема запчастей Case IH MAGNUM 190 - (33.220.06) - DIA KIT, HYDRAULIC TRAILER BRAKE, WITH CONTINUOUSLY VARIABLE TRANSMISSION (33) - BRAKES & CONTROLS
35
15
1
1
1
13
1
9
17
34
1
37
5
1
1
1
1
11
14
1
1
1
33
22
3
1
6
10
29
1
26
1
1
2
7
1
8
1
1
1
1
36
1
37
23
1
18
1
9
30
1
1
24
1
1
31
28
1
1
1
16
9
20
25
21
4
1
1
1
1
11
32
27
1
20
1
1
1
12
home
1
19
1
1
1

Артикул

Название

Примечание

Количество

1

719897006

DIA KIT, TRACTOR

Inc. 2 - 37

1шт.

2

9840568

TEE,9/16"-18 ORFS

Inc. 9

1шт.

3

84152180

HYD TUBE

1шт.

4

84146522

FILTER

1шт.

5

84152220

U-BOLT,M8 x 2, ZND

1шт.

6

84152193

BRACKET

1шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8

9706690

NUT,M8 x 1.25, Cl 8

2шт.

9

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

10

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

3шт.

12

47131496

PLUG,Hex, M12 x 1

M12 x 1

1шт.

13

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Inc. 14, 15

1шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

16

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

M8 x 60

2шт.

17

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

18

87601534

BRAKE VALVE

Assembly

1шт.

19

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

20

87668376

CAP,9/16"-18 Inch THD

2шт.

21

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

Incl.19, 22

1шт.

22

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

23

87608326

BRAKE LINE

RH Brake

1шт.

24

84176588

HYD TUBE,6 mm OD x 50, 35 mm L

LH Brake

1шт.

25

5185562

ELBOW

Inc. 10, 26

1шт.

26

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

27

44015354

QUICK MALE COUPLING

1шт.

28

5196322

BRACKET

1шт.

29

87608334

TUBE

1шт.

30

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

31

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

32

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

33

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

34

84152170

HYD TUBE

1шт.

35

82030175

BANJO FITTING,M8 x 1 x 53mm

1шт.

36

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

37

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

Выбрано товаров: 37
