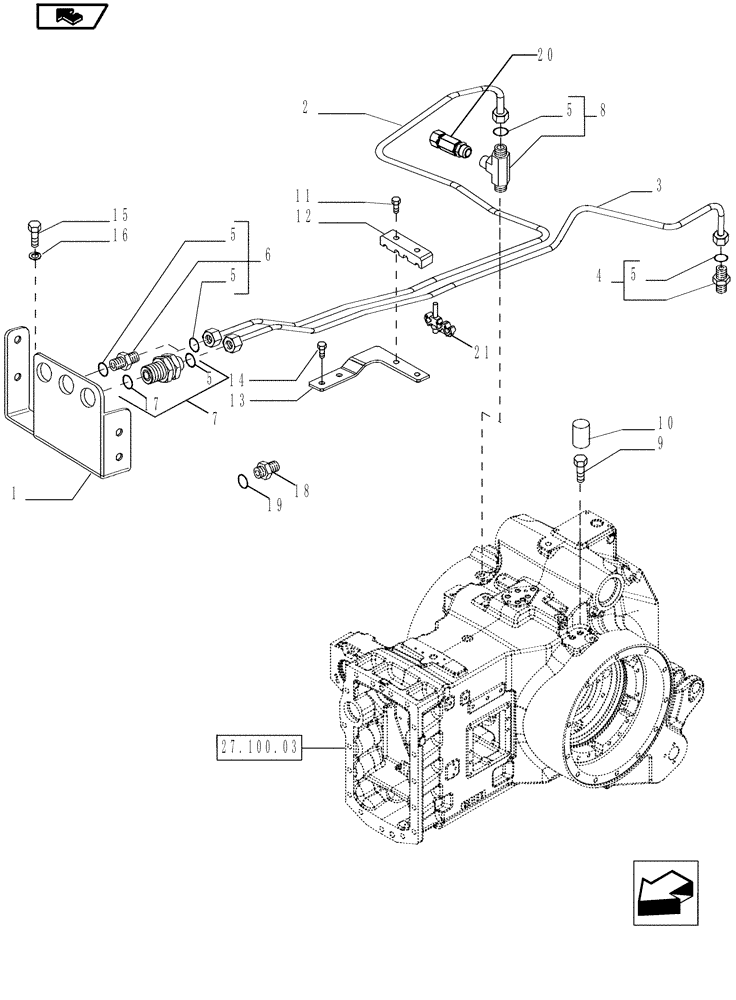

Запчасти Case IH MAGNUM 190 (33.201.02) - BRAKE PIPING, WITH CONTINUOUSLY VARIABLE TRANSMISSION (33) - BRAKES & CONTROLS

1

87608150

SUPPORT

1шт.

2

87718494

TUBE

Right hand

1шт.

3

87718496

TUBE

Left hand

1шт.

4

47131549

FITTING,M12 x 1.5

Inc. 5 (Qty 1)

2шт.

5

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

5шт.

6

47136517

HYD CONNECTOR,ORFS 11/16"-16

Inc. 5 (Qty 2)

2шт.

7

87711900

HYD CONNECTOR

Inc. 5, 17

1шт.

8

87681989

HYD CONNECTOR,11/16"-16 x M12 x 1 x 11/16"-16

Inc. 5 (Qty 1)

1шт.

9

5155682

BLEED SCREW,Bleeder, M12 x 1.25 x 33mm

2шт.

10

5171793

BOOT

2шт.

11

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

2шт.

12

87724327

CLAMP BRACKET

1шт.

13

87724326

BRACKET

1шт.

14

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

15

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

16

10520005

WASHER,12.2mm ID x 22mm OD x 3mm Thk

D=20

2шт.

17

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

18

86639059

UNION,9/16"-18 ORFS, Blkd

Inc. 19

1шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

20

87678028

SENSOR

Brake Pressure Transducer

1шт.

21

14582480

CLIP

1шт.
