Запчасти Case IH MAGNUM 190 (25.108.03) - FRONT AXLE PLANETARIES & HUB, MFD, CLASS 4 AXLE (25) - FRONT AXLE SYSTEM

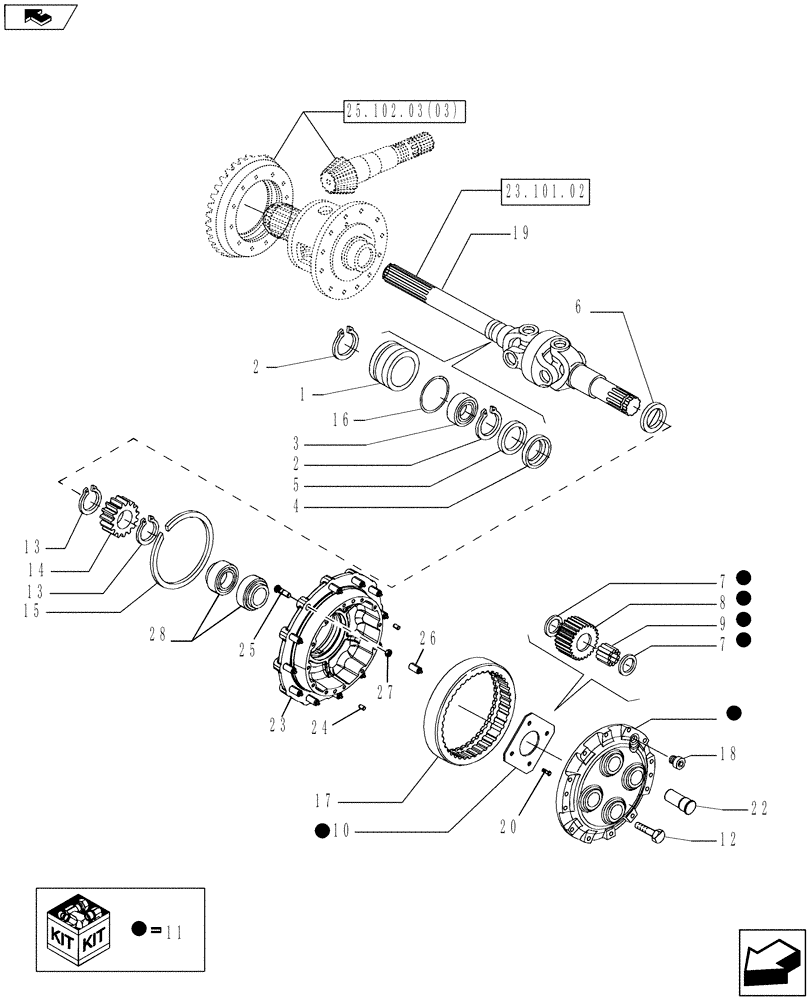

Схема запчастей Case IH MAGNUM 190 - (25.108.03) - FRONT AXLE PLANETARIES & HUB, MFD, CLASS 4 AXLE (25) - FRONT AXLE SYSTEM
11
2
5
12
7
11
11
18
8
25.102.03(03)
9
11
17
23.101.02
28
13
3
23
24
2
7
15
26
11
19
11
13
22
14
16
1
27
20
home
11
6
25
4
11
10

Артикул

Название

Примечание

Количество

1

84181579

BUSHING,60mm ID x 95mm OD x 52mm L

2шт.

2

11061376

SNAP RING,M68, Int

4шт.

3

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

2шт.

4

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

5

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

45 x 60 x 16

2шт.

6

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

2шт.

7

87576870

THRUST WASHER

16шт.

8

87576871

IDLER PINION

8шт.

9

87576874

ROLLER BEARING,38.2mm ID x 48.2mm OD x 35.5mm W

Pkg Qty 27

8шт.

10

87576876

PLATE

2шт.

11

87576872

PLANETARY REDUCER

2шт.

12

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

24шт.

13

5123651

SNAP RING,36mm, External

4шт.

14

84262815

PLANETARY GEAR

2шт.

15

4986355

CIRCLIP

2шт.

16

14465680

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

2шт.

17

5102130

RING GEAR

2шт.

18

14326211

PLUG,M22 x 1.50, R50, ZND

M22 x 1

2шт.

19

84184133

AXLE-SHAFT, ARTICULA

LH

1шт.

19

84184130

AXLE-SHAFT, ARTICULA

RH

1шт.

20

14274424

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

21

87576873

SUPPORT

Planetary Carrier Assembly, Incl 22

2шт.

22

87576864

PIN

8шт.

23

84262561

HUB

2шт.

24

4985063

DOWEL,12mm OD x 20mm L

2шт.

25

84295460

WHEEL BOLT

24шт.

26

84262643

PROTECTIVE SLEEVE,4.8mm ID x 19mm OD x 50.8mm L

24шт.

27

253212A1

NUT,M20 x 1.5, Class 10

24шт.

28

87303827

TAPERED BEARING,120mm ID x 170mm OD x 27mm W

4шт.

Выбрано товаров: 29
