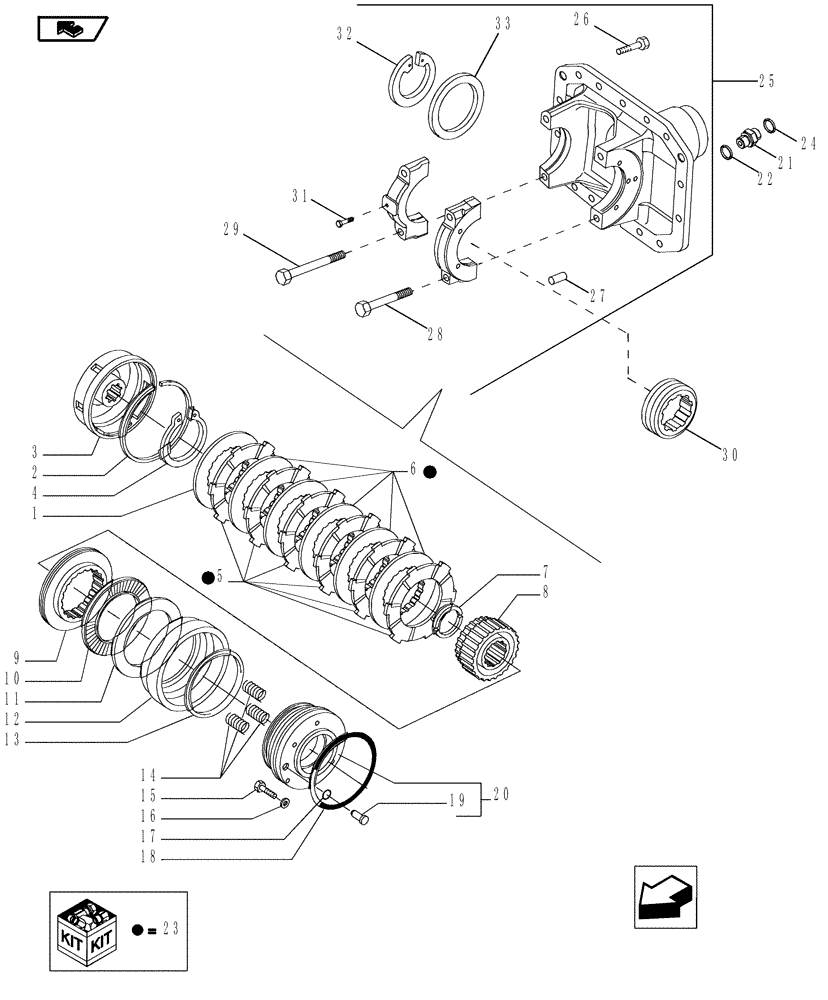

Запчасти Case IH MAGNUM 190 (25.102.03[01]) - DIFFERENTIAL, MFD CLASS 4 AXLE (25) - FRONT AXLE SYSTEM

84263629

DIFFERENTIAL ASSY

Complete

1шт.

1

5141750

RING GEAR

1шт.

2

5134095

CIRCLIP,200mm ID

1шт.

3

5134083

HOUSING

1шт.

4

11083176

SNAP RING,M125, Ext

1шт.

5

5198090

CLUTCH PLATE,132mm ID x 194mm OD

6шт.

6

5198088

CLUTCH PLATE,119mm ID x 180mm OD

5шт.

7

5135032

HALF-RING,58mm ID x 70mm OD x 4mm Thk

1шт.

8

5134099

HUB

1шт.

9

5144582

DISC,119mm ID x 180mm OD x 15mm Thk

1шт.

10

5134174

ROLLER BEARING,140mm ID x 180mm OD x 5mm W

1шт.

11

5134175

WASHER,140mm ID x 180mm OD x 1mm Thk

140 x 180 x 1

1шт.

12

5134093

PLUNGER

1шт.

13

5140120

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

2.62 x 145.72

1шт.

14

5120761

SPRING,7.7mm OD x 20.5mm L

1шт.

15

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

5шт.

16

10569374

LOCK WASHER,M8

5шт.

17

14452881

O-RING,7.65mm ID x 1.78" Width

1шт.

18

5140121

O-RING,0.103" Thk x 6.737" ID, -166, Cl 5, 75 Duro

2.62 x 171.12

1шт.

19

5148467

PIN,6mm OD x 24.5mm L

1шт.

20

5148468

FLANGE

1шт.

21

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

22

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

23

5198089

CLUTCH PACK

1шт.

24

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

25

84263627

SUPPORT

1шт.

26

14254734

LOCK BOLT,Hex, M14 x 1.5 x 45mm, Cl 10.9

14шт.

27

4966244

PIN,5mm OD x 15mm L

M6 x 18

4шт.

28

14255334

SCREW,Hex, M14 x 1.5 x 75mm, Cl 10.9

M14 x 1,5 x 75

2шт.

29

14255734

SCREW,Hex, M14 x 1.5 x 90mm, Cl 10.9

2шт.

30

5110423

RING NUT

M115 x 15

1шт.

31

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

1шт.

32

11075476

SNAP RING,M110, Int

1шт.

33

5135019

SHIM,98.8mm ID x 109.8mm OD x 1mm Thk

1шт.

33

5135020

SHIM,98.8mm ID x 109.8mm OD x 1.1mm Thk

1шт.

33

5135021

SHIM,98.8mm ID x 109.8mm OD x 1.2mm Thk

1шт.

33

5135022

SHIM,98.8mm ID x 109.8mm OD x 1.3mm Thk

1шт.

33

5135023

SHIM,98.8mm ID x 109.8mm OD x 1.4mm Thk

1шт.

33

5135024

SHIM,98.8mm ID x 109.8mm OD x 1.5mm Thk

1шт.

33

5135025

SHIM,98.8mm ID x 109.8mm OD x 1.6mm Thk

1шт.

33

5135026

SHIM,98.8mm ID x 109.8mm OD x 1.7mm Thk

1шт.

33

5135027

SHIM,98.8mm ID x 109.8mm OD x 1.8mm Thk

1шт.

33

5135028

SHIM,98.8mm ID x 110mm OD x 1.9mm Thk

1шт.

33

5135029

SHIM,2mm Thk

1шт.
