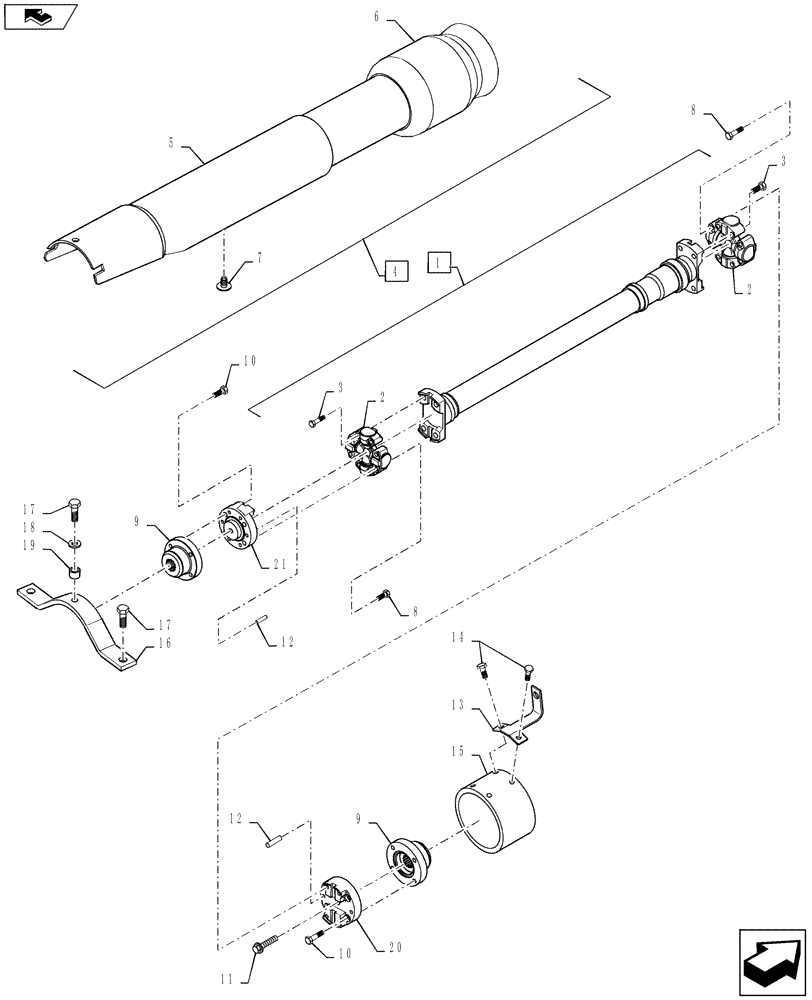

Запчасти Case IH MAGNUM 190 (23.314.02) - MFD CLASS 4 AXLE, DRIVE SHAFT & SHIELD (23) - FOUR WHEEL DRIVE SYSTEM

1

87426992

DRIVE SHAFT

1шт.

2

84318977

YOKE

MFD End

1шт.

3

84318976

YOKE

Transmission End

1шт.

4

84242767

PROTECTION PLATE

1шт.

5

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

7

93199C1

FASTENER

2шт.

8

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

9

84318975

YOKE

5C

2шт.

10

84319918

HEX SOC SCREW,M12 x 1.75 x 70mm, Cl 10.9

8шт.

11

854-12055

BOLT,Hvy Hex, M12 x 55mm, Cl 10.9

(Not Shown)

1шт.

12

837-12035

DOWEL,M12 x 35

2шт.

13

84300754

BRACKET, SUPPORTING

1шт.

14

43232

BOLT,Hex, M8 x 16mm, Cl 10.9

2шт.

15

84318718

ADAPTER

1шт.

16

84256543

BRACKET, SUPPORTING

1шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

18

877-10830

2шт.

19

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

20

86224H

SPACER,1/4" Pipe x 3/8"

1шт.
