Запчасти Case IH MAGNUM 190 (21.155.31) - TRANSMISSION DROP BOX (21) - TRANSMISSION

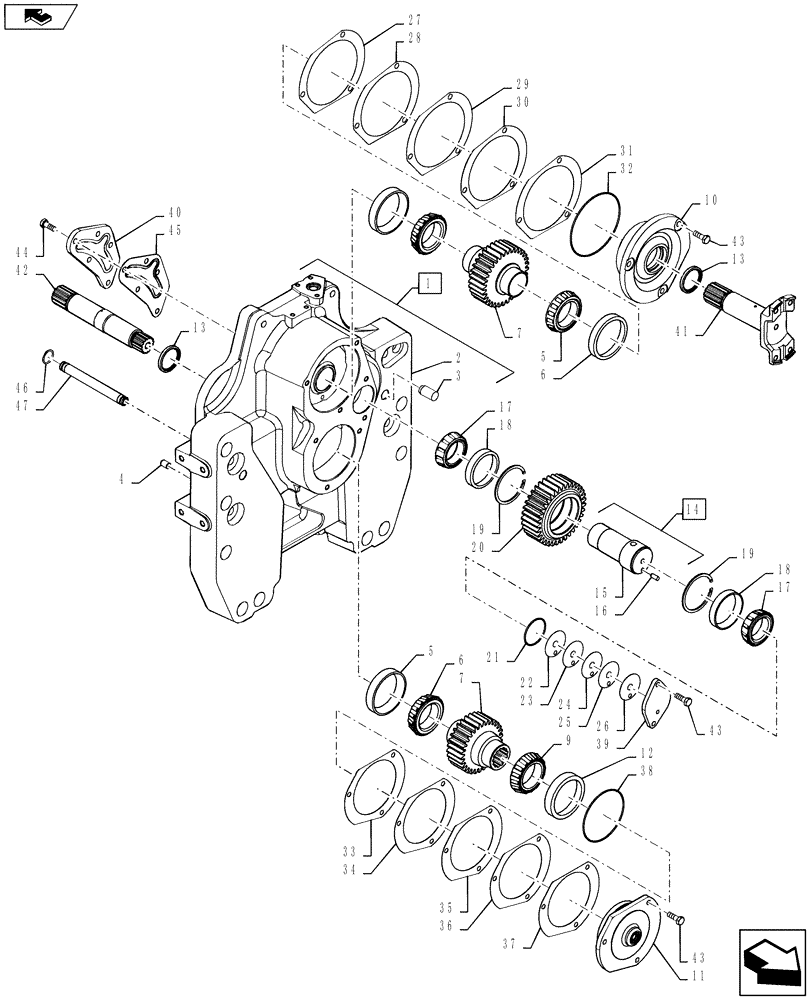

Схема запчастей Case IH MAGNUM 190 - (21.155.31) - TRANSMISSION DROP BOX (21) - TRANSMISSION
12
29
7
39
47
5
25
10
5
3
4
7
43
37
20
32
home
42
45
33
18
43
38
28
46
18
43
41
15
9
36
19
11
17
22
13
26
13
24
40
35
17
19
21
14
6
2
23
1
27
6
44
31
16
34
30

Артикул

Название

Примечание

Количество

1

87740759

HOUSING

Assembly, Dropbox with Dowels, Incl 2, 3, 4

1шт.

2

NSS

NOT SOLD SEPARAT

DROPBOX, Incl in 1

1шт.

3

837-20040

DOWEL,M20 x 40

Pin

2шт.

4

37-1812

DOWEL,1/2" x 3/4"

Pin

2шт.

5

105497H

BEARING CUP,96.85mm OD x 15.77mm W

Taper Roller

3шт.

6

166258

BEARING CONE,2.25" ID x 0.864"

Cone

3шт.

7

87740760

GEAR SHAFT

Input/Output 30T

2шт.

8

305138A1

PLUG

Used to Fill Holes (Not Shown)

1шт.

9

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

Cone

1шт.

10

87740761

BEARING CAP,72 mm ID x 145 mm OD x 44.5 mm

Top Bearing/Gear Support

1шт.

11

84128168

BEARING COVER

Bearing Output

1шт.

12

105496H

BEARING CUP,97.63mm OD x 19.45mm W

Taper Roller

1шт.

13

87740762

OIL SEAL

Double lip Shaft 45.24 Bore 57.2

2шт.

14

87740764

SHAFT ASSY.

Idler Support, Incl 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

IDLER, Support, Incl in 14

1шт.

16

837-8020

DOWEL,8mm OD x 20mm L

Pin 8x20mm

1шт.

17

287902

ROLLER BEARING,50.8mm ID x 22.23mm W

Cone

2шт.

18

287066

BEARING CUP,82.58mm OD x 16.51mm W

Taper Roller

2шт.

19

101-21325

SNAP RING,#325, 3.488", Int

2шт.

20

302554A1

IDLER GEAR

Idler, 35T

1шт.

21

238-5140

O-RING,0.103" Thk x 2.237" ID, -140, Cl 5, 75 Duro

1шт.

22

228300A1

SHIM,13.5mm ID x 59mm OD x 0.36mm Thk

Idler Gear, 0.356 mm

1шт.

23

228303A1

SHIM,13.50mm ID x 59mm OD x 0.635mm Thk

Idler Gear, 0.635 mm

1шт.

24

275215A1

SHIM,13.5mm ID x 59mm OD x 0.2mm Thk

Idler Gear, 0.203 mm

1шт.

25

341207A1

SHIM,13.5mm ID x 59mm OD x 0.18mm Thk

Idler Gear, 0.158 mm

1шт.

26

341208A1

SHIM,13.50mm ID x 59mm OD x 0.152mm Thk

Idler Gear, 0.152 mm

1шт.

27

228267A1

SHIM,146.4mm ID x 191mm OD x 0.36mm Thk

Input Gear, 0.356 mm

1шт.

28

228270A1

SHIM,146.4mm ID x 191mm OD x 0.64mm Thk

Input Gear, 0.635 mm

1шт.

29

275214A1

SHIM,146mm ID x 191mm OD x 0.2mm Thk

Input Gear, 0.203 mm

1шт.

31

341206A1

SHIM,146.4mm ID x 191mm OD x 0.15mm Thk

Input Gear, 0.152 mm

1шт.

32

238-5161

O-RING,0.103" Thk x 5.438" ID, -161, Cl 5, 75 Duro

1шт.

33

228261A1

SHIM,123.4mm ID x 175mm OD x 0.36mm Thk

Output Gear, 0.356 mm

1шт.

34

228265A1

SHIM,123.4mm ID x 175mm OD x 0.64mm Thk

Output Gear, 0.635 mm

1шт.

35

275213A1

SHIM,123.4mm ID x 175mm OD x 0.2mm Thk

Output Gear, 0.203 mm

1шт.

36

341209A1

SHIM,123.4mm ID x 175mm OD x 0.18mm Thk

Output Gear, 0.178 mm

1шт.

37

341210A1

SHIM,0.152mm Thk

Output Gear, 0.152 mm

1шт.

38

238-5157

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

1шт.

39

258469A1

COVER PLATE

Lube

1шт.

40

84128469

GASKET

1шт.

41

84201887

SHAFT

Input w/6C Yoke

1шт.

42

84192914

DRIVE SHAFT

Output

1шт.

43

339770A1

BOLT,Hex, M10 x 30mm, Cl 10.9, W/ Sealant

Assembly, M10X30-10.9

8шт.

44

87015733

BOLT,M10 x 1.5 x 31.58mm, Cl 10.9

M10x25 Full CL10.9

5шт.

45

84128469

GASKET

1шт.

46

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

47

84172098

HYD TUBE,17.45 mm ID x 25.40 mm OD x 246.45 mm L

Jumper, 246.4 mm (9.70 in) Use With Powershift Transmission

1шт.

47

84172099

HYD TUBE,17.45 mm ID x 25.40 mm OD x 159.7 mm L

Jumper, 159.7 mm (6.28 in) Use With Constant Velocity Transmission

1шт.

Выбрано товаров: 47
