Запчасти Case IH MAGNUM 190 (21.155.11[06]) - SPEED GEARS & CLUTCHES, "C" & "D" CLUTCHES, WITH POWERSHIFT TRANSMISSION (21) - TRANSMISSION

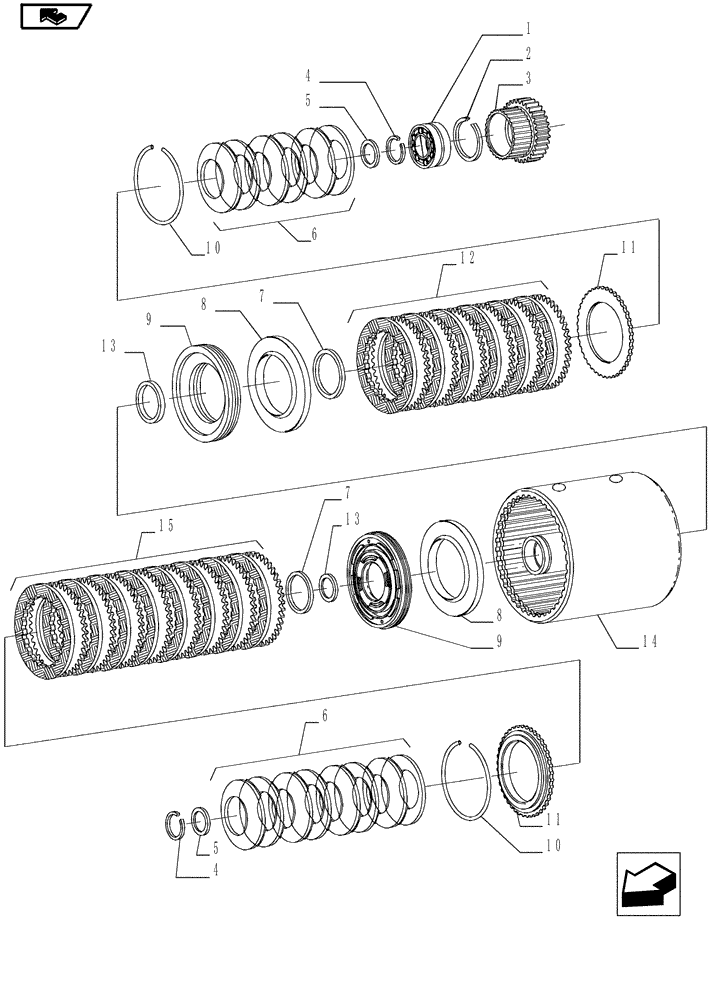

Схема запчастей Case IH MAGNUM 190 - (21.155.11[06]) - SPEED GEARS & CLUTCHES, "C" & "D" CLUTCHES, WITH POWERSHIFT TRANSMISSION (21) - TRANSMISSION
8
13
15
6
14
4
9
9
6
10
7
12
home
13
7
5
1
2
4
5
10
11
3
8
11

Артикул

Название

Примечание

Количество

1

5162622

BALL BEARING,50mm ID x 80mm OD x 32mm W

1шт.

2

5162623

CIRCLIP,80mm ID

1шт.

3

87553310

PINION

3/4 Speed Driven Gear

1шт.

4

5175981

CIRCLIP,1.5mm Thk

2шт.

5

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

2шт.

6

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

14шт.

7

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

2шт.

8

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

2шт.

9

87547824

PISTON

2шт.

10

47132782

SNAP RING,3mm Thk, Int

2шт.

11

47132780

THRUST PLATE,60T, 154.75mm OD

2шт.

12

87530788

CLUTCH PACK

1шт.

13

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

2шт.

14

47132827

CLUTCH HOUSING

1/2 - 3/4 Speed

1шт.

15

87530789

CLUTCH PACK

1шт.

Выбрано товаров: 15
