Запчасти Case IH MAGNUM 190 (21.155.08[01]) - RANGE GEARSHIFT MECHANISM - HYDRAULIC CYLINDER - BREAKDOWN, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

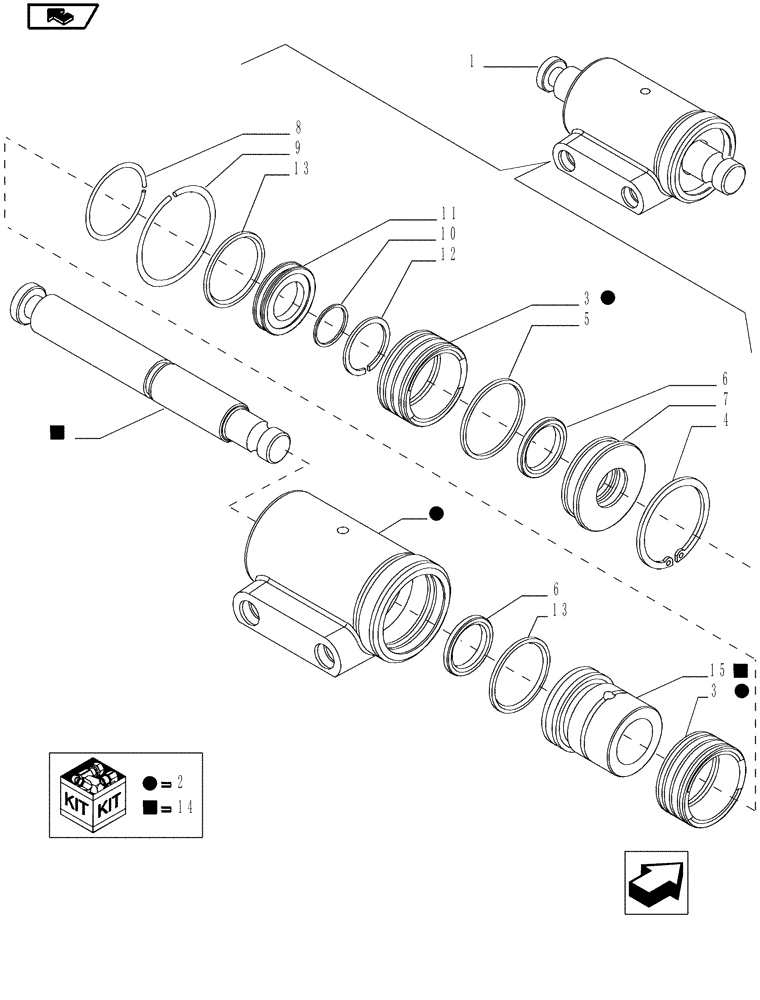

Схема запчастей Case IH MAGNUM 190 - (21.155.08[01]) - RANGE GEARSHIFT MECHANISM - HYDRAULIC CYLINDER - BREAKDOWN, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION
3
15
13
6
home
2
11
14
14
12
5
3
10
14
2
2
1
4
9
6
7
14
8
2
2
13

Артикул

Название

Примечание

Количество

1

87549883

OPERATING CYLINDER

1шт.

1

87549884

OPERATING CYLINDER

1шт.

2

87700317

BARREL

1шт.

3

5199739

BUSHING

2шт.

4

11060676

CIRCLIP,M55, Int

D=55

1шт.

5

14459180

O-RING,45.69mm ID x 2.62"

2.62 x 45.69

1шт.

6

81902618

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

2шт.

7

87549336

CYLINDER END CAP

1шт.

8

13398876

SNAP RING,M38, Int

1шт.

9

13422176

CIRCLIP,M26, Int

1шт.

10

14453680

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

1.78 x 20.35

1шт.

11

5199737

PISTON RING,41.65mm OD x 23.8mm ID x 8mm Thk

1шт.

12

11067276

SNAP RING,M24, Ext

24mm

1шт.

13

5175009

SEALING RING,34.55mm ID x 42.02mm OD x 3.2mm Thk

SEALRING

2шт.

14

87549877

SPOOL,41.65mm OD

Used With Cylinder 87549883

1шт.

14

87549882

SPOOL,41.65mm OD

Used With Cylinder 87549884

1шт.

15

47127530

PISTON

1шт.

Выбрано товаров: 17
