(21.155.06[03]) - TRANSMISSION 50KPH & 40KPH ECONOMY, REVERSER UNIT, WITH CONTINUOUSLY VARIABLE TRANSMISSION

Запчасти Case IH MAGNUM 190 (21.155.06[03]) - TRANSMISSION 50KPH & 40KPH ECONOMY, REVERSER UNIT, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

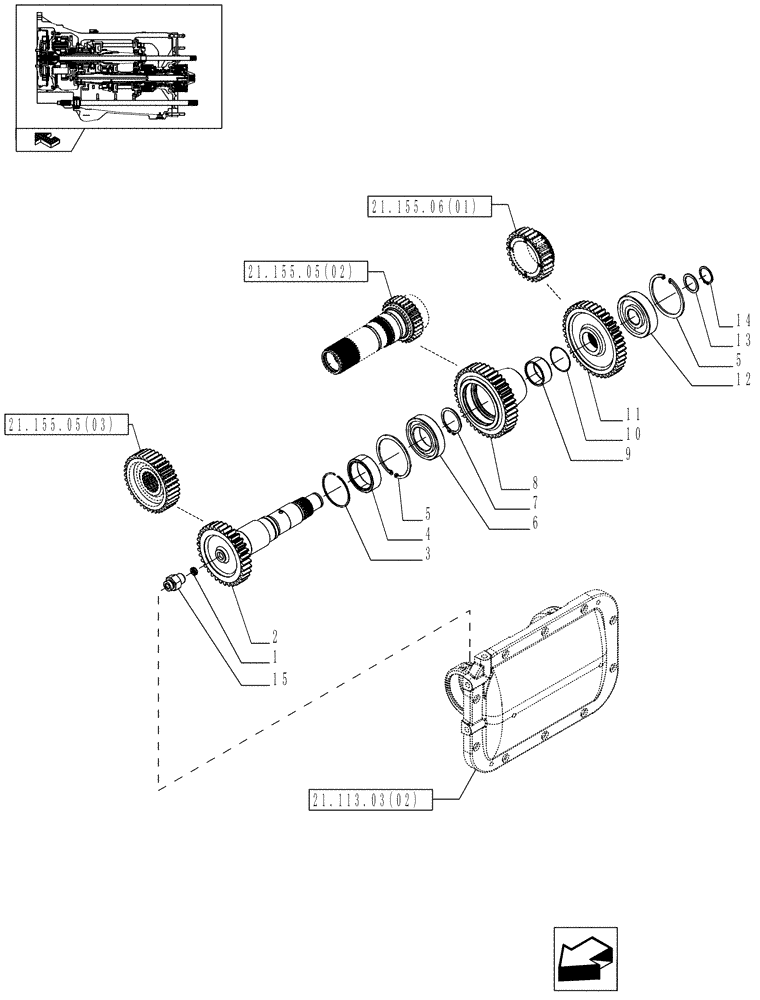

Схема запчастей Case IH MAGNUM 190 - (21.155.06[03]) - TRANSMISSION 50KPH & 40KPH ECONOMY, REVERSER UNIT, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION
2
9
home
7
1
11
12
13
3
5
4
8
21.113.03(02)
21.155.05(03)
21.155.05(02)
21.155.06(01)
15
10
5
6
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87541312

PLUG

1шт.

2

87588055

SHAFT,40.6/128.7mm ID x 44.6/147.4mm OD x 304mm L, 21/33T

R2

1шт.

3

87567449

SNAP RING,M82.6, Ext

1шт.

4

87562575

NEEDLE BEARING,Needle, 63mm ID x 80mm OD x 25mm W

1шт.

5

11062976

SNAP RING,Int, M100 x 3

2шт.

6

87562562

BALL BEARING,55mm ID x 100mm OD x 21mm W

55 x 100 x 21

1шт.

7

11069576

SNAP RING,M55, Ext

D=55

1шт.

8

87528476

GEAR,40T

1шт.

9

5162256

NEEDLE BEARING,Needle, 50mm ID x 58mm OD x 25mm W

1шт.

10

5142178

SNAP RING,1.5mm Thk

1шт.

11

87589205

GEAR,42T

R2

1шт.

12

87562566

BALL BEARING,35mm ID x 100mm OD x 25mm W

1шт.

13

87548132

SPACER,35mm ID x 45mm OD x 3mm L

1шт.

14

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

15

87591246

FITTING

1шт.
