Запчасти Case IH MAGNUM 190 (21.155.05[04]) - TRANSMISSION 40KPH - REVERSER UNIT, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

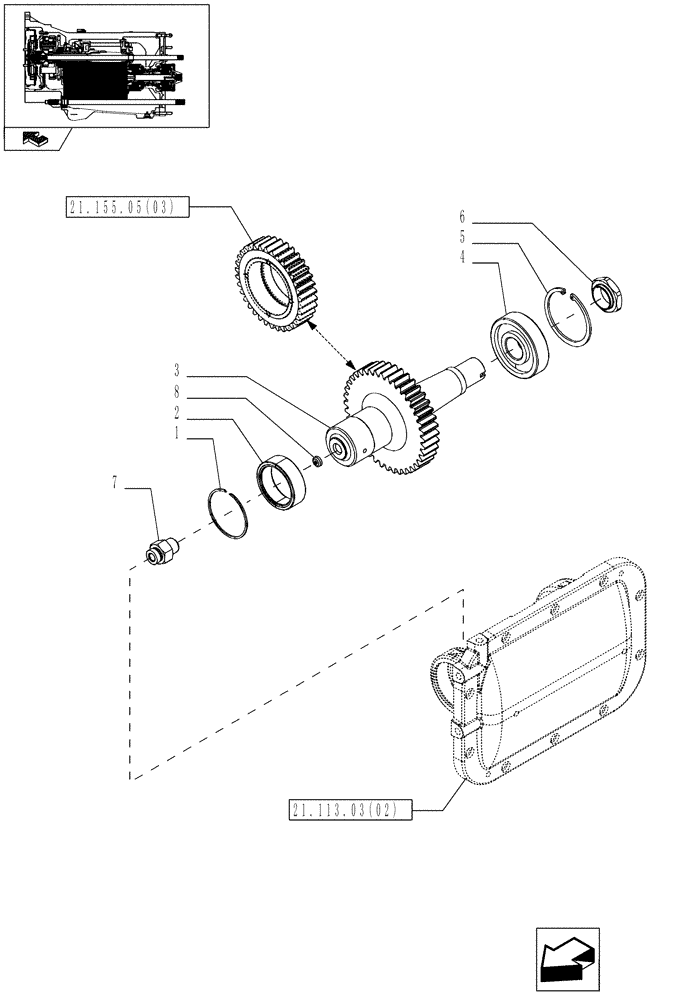

Схема запчастей Case IH MAGNUM 190 - (21.155.05[04]) - TRANSMISSION 40KPH - REVERSER UNIT, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION
8
4
7
6
5
3
home
21.113.03(02)
21.155.05(03)
1
2

Артикул

Название

Примечание

Количество

1

87567449

SNAP RING,M82.6, Ext

D=80

1шт.

2

87562575

NEEDLE BEARING,Needle, 63mm ID x 80mm OD x 25mm W

63 x 80 x 25

1шт.

3

87588102

SHAFT

Reverse

1шт.

4

87562566

BALL BEARING,35mm ID x 100mm OD x 25mm W

35 x 100 x 25

1шт.

5

11062976

SNAP RING,Int, M100 x 3

1шт.

6

87590614

NUT

M35 x 1.5

1шт.

7

87591246

FITTING

1шт.

8

87541312

PLUG

1шт.

Выбрано товаров: 8
