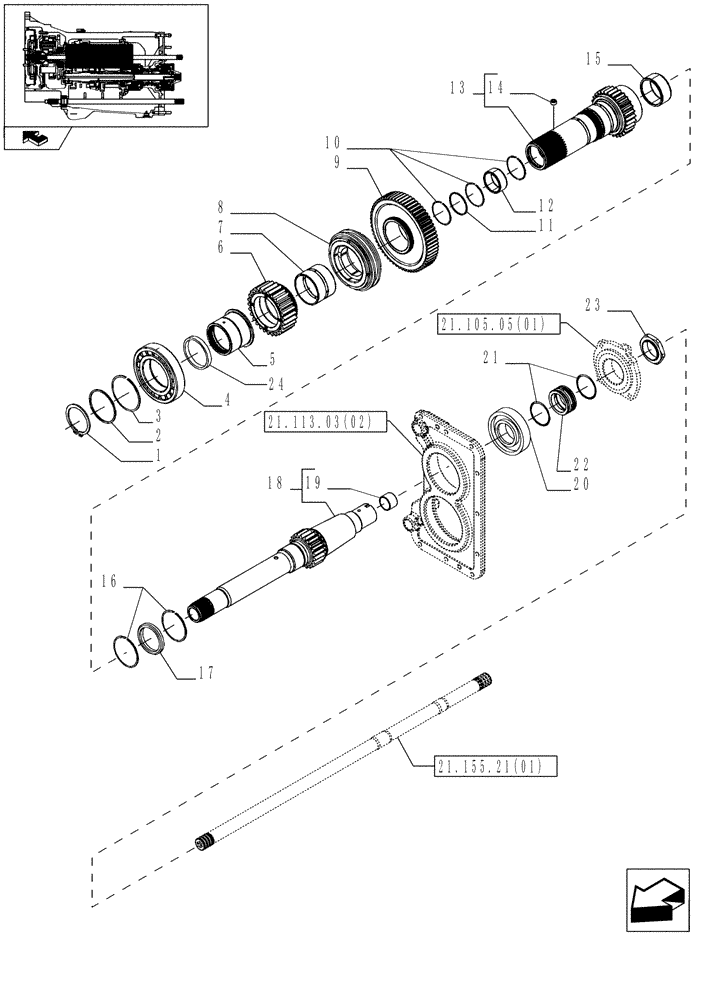

Запчасти Case IH MAGNUM 190 (21.155.05[02]) - TRANSMISSION 40KPH - I & III RANGE GEARS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

1

11070576

SNAP RING,M75, Ext

1шт.

2

87684516

SNAP RING,M85, Ext

D=85

1шт.

3

87684515

SPACER,85mm ID x 95mm OD x 3mm L

1шт.

4

87702000

ROLLER BEARING,85mm ID x 150mm OD x 28mm W

1шт.

5

84195306

BEARING CARRIER

1шт.

6

87528197

GEAR

Primary Gear - I

1шт.

7

87534220

BUSHING,75mm ID x 82mm OD x 59.5mm L

1шт.

8

87534212

SYNCHRONIZER,144mm ID x 156mm OD x 46mm L, 38/48T

1шт.

9

87693136

GEAR

Primary Gear III

1шт.

10

5142178

SNAP RING,1.5mm Thk

3шт.

11

84153562

RUBBER SEAL,50mm ID x 58mm OD x 4mm Thk

1шт.

12

5162256

NEEDLE BEARING,Needle, 50mm ID x 58mm OD x 25mm W

1шт.

13

84199556

PRIMARY SHAFT

1шт.

14

5193270

ORIFICE,M6 x 1 x 4mm, Cl 8.8

1шт.

15

87562575

NEEDLE BEARING,Needle, 63mm ID x 80mm OD x 25mm W

63 x 80 x 25

1шт.

16

87567449

SNAP RING,M82.6, Ext

D=80

2шт.

17

87699105

OIL SEAL,64mm ID x 80mm OD x 8mm

1шт.

18

87699353

SHAFT

Inc. 19

1шт.

19

5107725

BUSHING,31.99mm ID x 36mm OD x 25mm L

1шт.

20

87562151

BALL BEARING,55mm ID x 120mm OD x 29mm W

55 x 120 x 29

1шт.

21

87588681

SEALING RING,63.81mm ID x 67.81mm OD x 2.87mm Thk

2шт.

22

87589208

SELF LUB RING,50mm ID x 66.5mm OD x 29.6mm Thk

1шт.

23

87562134

RING NUT,Hex, M50 x 1.5

M50

1шт.

24

84231224

SPACER,74.6mm ID x 88mm OD x 3mm L

3.0 mm

1шт.
