Запчасти Case IH MAGNUM 190 (21.155.03) - CENTRAL REDUCTION GEARS, CLUTCH AND GEARS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

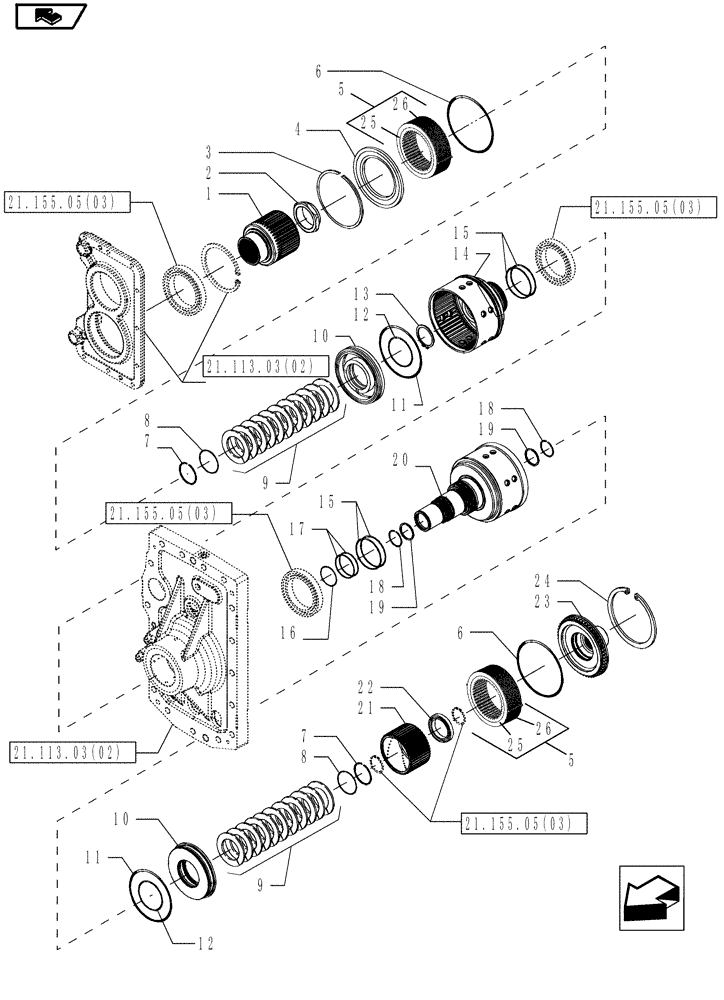

Схема запчастей Case IH MAGNUM 190 - (21.155.03) - CENTRAL REDUCTION GEARS, CLUTCH AND GEARS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION
26
24
25
11
15
1
2
9
22
10
18
17
26
23
25
3
6
21
home
18
7
12
8
7
4
21.113.03(02)
21.155.05(03)
21.155.05(03)
21.155.05(03)
21.113.03(02)
21.155.05(03)
5
14
5
15
19
19
11
10
9
6
13
16
12
20
8

Артикул

Название

Примечание

Количество

1

87528403

CLUTCH HOUSING

1шт.

2

87545626

NUT,Hex, M65 x 2

M65 x 2

1шт.

3

5122844

SNAP RING,168mm, 2mm Thk, Int

D=168

1шт.

4

5122821

THRUST PLATE,53T, 173mm OD

1шт.

5

87701174

CLUTCH DISC,51.7mm Thk

CLUTCH DISK Inc. 25, 26

2шт.

6

5166536

SPRING,173mm OD x 1.27mm Thk

22шт.

7

47136464

SNAP RING,M58, Ext

2шт.

8

47136474

RETAINER CUP

2шт.

9

47136549

BELLEVILLE SPRING

22шт.

10

87707334

PISTON

2шт.

11

5172235

GASKET,144.55mm ID x 152.06mm OD x 3.2mm Thk

2шт.

12

5160154

GASKET,79.97mm ID x 87.5mm OD x 3.2mm Thk

2шт.

13

11069776

SNAP RING,M58, Ext

1шт.

14

87701142

HOUSING

1шт.

15

87743137

SEALING RING,90mm OD x 2.35mm Thk

SEALRING

4шт.

16

14455180

O-RING,2.114" ID x 0.07" Width

1шт.

17

14464780

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

2шт.

18

5117076

CIRCLIP,M47, Ext

D=47

2шт.

19

87562129

OIL SEAL,40mm ID x 47mm OD x 4mm

40 x 47 x 4

2шт.

20

87701109

CLUTCH HOUSING

1шт.

21

87476182

HUB

1шт.

22

87476160

BALL BEARING,50 mm ID x 80 mm OD x 16 mm

1шт.

23

84173397

HUB

1шт.

24

11078676

SNAP RING,M175, Int

1шт.

25

87545640

Clutch

11шт.

26

5162396

Driving

11шт.

Выбрано товаров: 26
