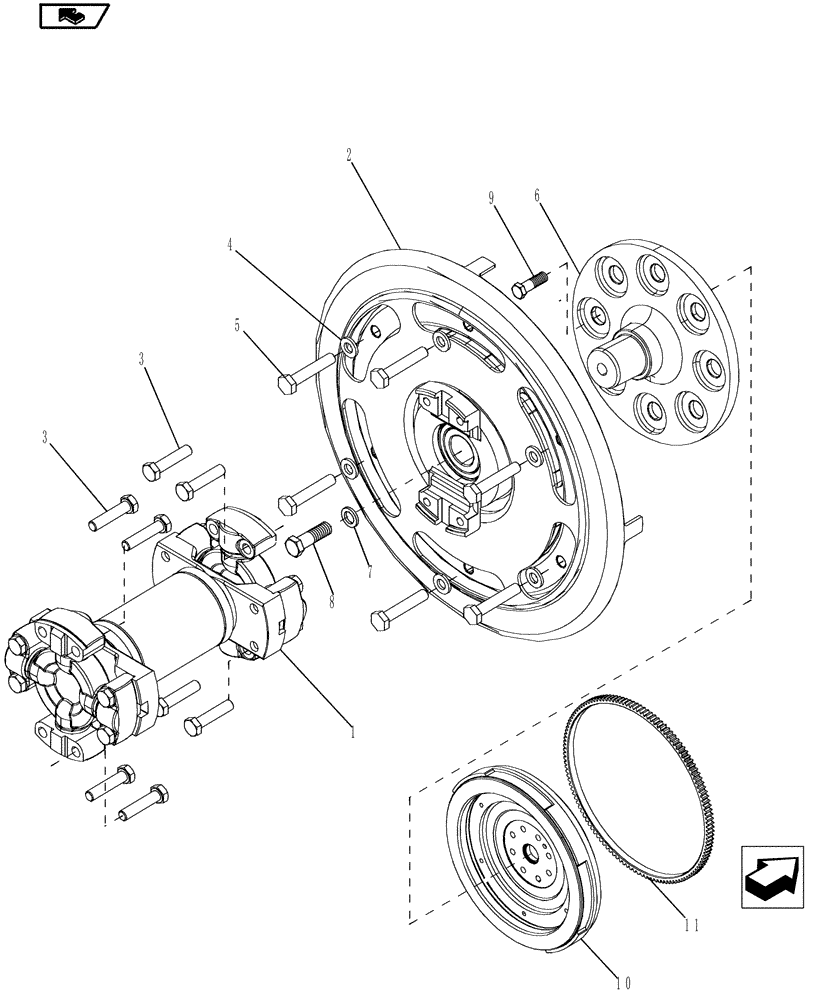

Запчасти Case IH MAGNUM 190 (21.135.03) - TRANSMISSION DRIVE SHAFT & DAMPER, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

1

87740779

DRIVE SHAFT

1шт.

2

87740220

DAMPER

1шт.

3

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

4

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

6шт.

5

84437627

BOLT,M10 x 55mm, Cl 10.9

6шт.

6

84256370

SUPPORT

Damper

1шт.

7

140219

WASHER,11mm ID x 40mm OD x 4mm Thk

1шт.

8

607-10020

BOLT,Hex, M10 x 20mm, Cl 10.9

1шт.

9

4894641

CAPTIVE WASHER SCREW,M12 X 1.25 X 31mm

8шт.

10

87740777

ENGINE FLYWHEEL

Engine

1шт.

11

4895353

RING GEAR,127T, 15.88mm L

1шт.
