(21.135.02) - TRANSMISSION DRIVE SHAFT & DAMPER, WITH POWERSHIFT TRANSMISSION

Запчасти Case IH MAGNUM 190 (21.135.02) - TRANSMISSION DRIVE SHAFT & DAMPER, WITH POWERSHIFT TRANSMISSION (21) - TRANSMISSION

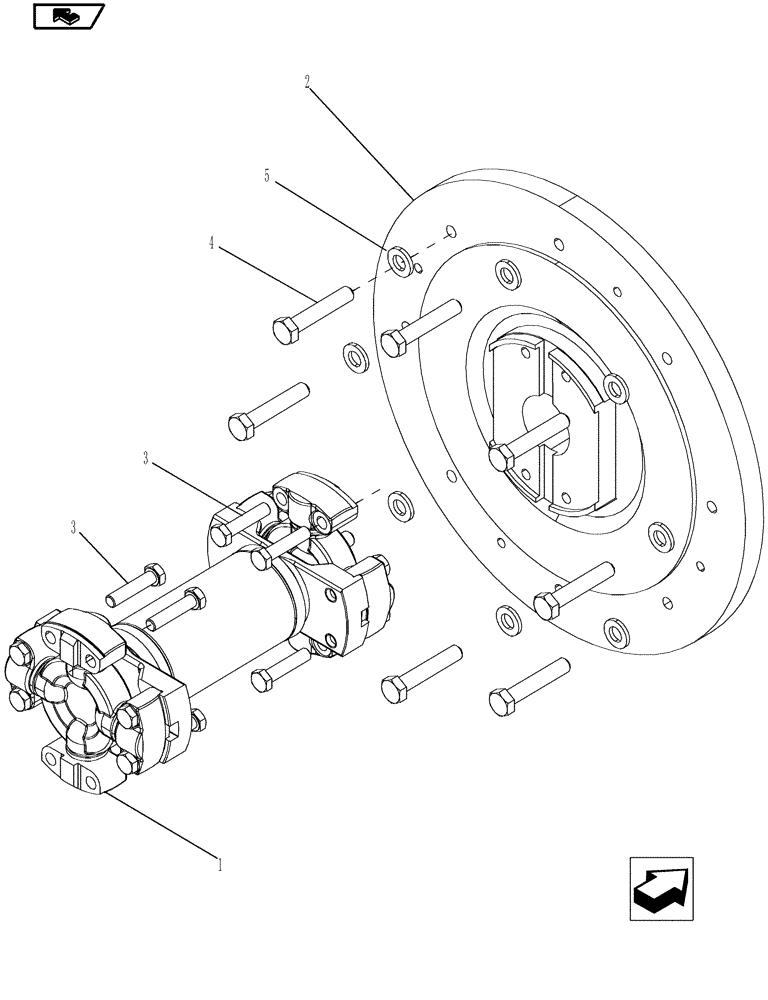

Схема запчастей Case IH MAGNUM 190 - (21.135.02) - TRANSMISSION DRIVE SHAFT & DAMPER, WITH POWERSHIFT TRANSMISSION (21) - TRANSMISSION
4
3
home
5
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87740769

DRIVE SHAFT

1шт.

2

87740771

DAMPER

1шт.

3

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

4

16208430

BOLT,Hex, M12 x 1.25 x 65mm, Cl 10.9

8шт.

5

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

8шт.
