Запчасти Case IH MAGNUM 190 (21.135.01[01]) - TRANSMISSION TOP COVER CONTROL VALVE, WITH POWERSHIFT TRANSMISSION (21) - TRANSMISSION

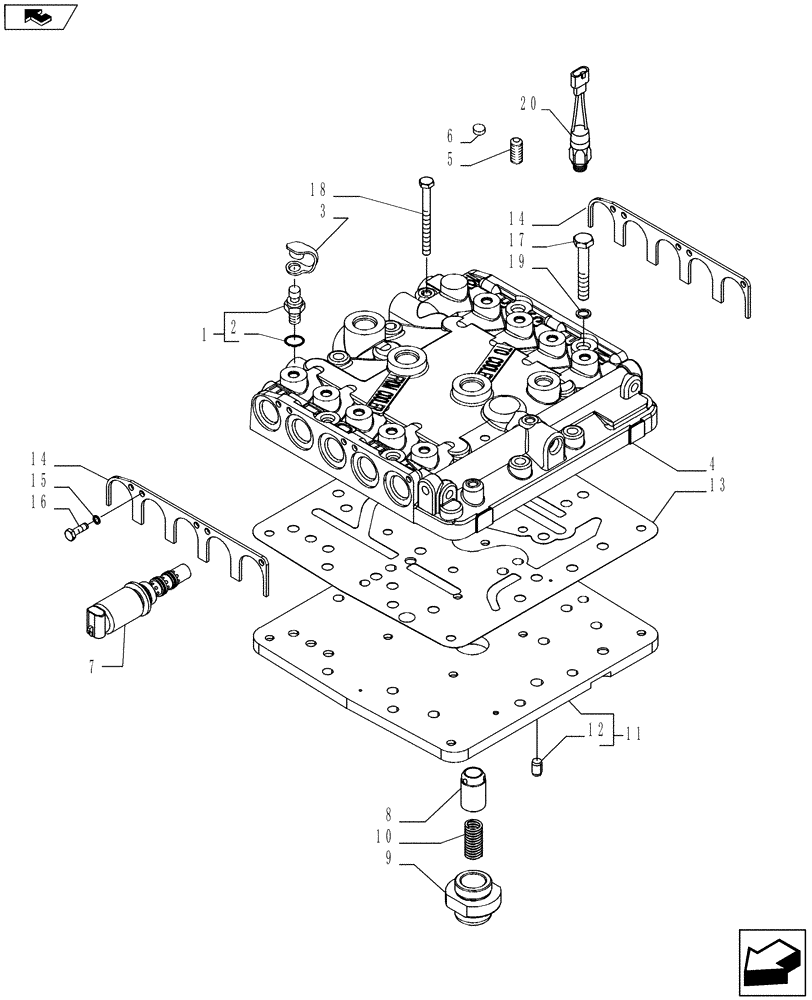

Схема запчастей Case IH MAGNUM 190 - (21.135.01[01]) - TRANSMISSION TOP COVER CONTROL VALVE, WITH POWERSHIFT TRANSMISSION (21) - TRANSMISSION
8
1
3
10
home
20
6
15
4
16
14
9
19
2
14
13
11
12
17
7
5
18

Артикул

Название

Примечание

Количество

1

5185423

COUPLING

Inc.2 (Qty 1)

5шт.

2

14437785

O-RING,11.3mm ID x 2.4mm

5шт.

3

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

5шт.

4

87315898

TOP COVER

Inc. 5, 6

1шт.

5

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

4шт.

6

14328401

PLUG,M14, Tapered

1шт.

7

87739558

SOLENOID VALVE,14W

10шт.

7

87739558R

REMAN-SOLENOID

10шт.

7

87739558C

CORE-SOLENOID

Return Number

10шт.

8

5187494

BY-PASS VALVE

1шт.

9

5183477

BODY

1шт.

10

5176720

SPRING,Compression, 17mm OD x 50mm L

1шт.

11

87342776

PLATE

Master Clutch, Inc. 12

1шт.

12

5153109

DOWEL,10mm OD x 15mm L

2шт.

13

5194959

GASKET,0.5mm Thk

1шт.

14

47126217

PLATE

2шт.

15

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

10шт.

16

14433121

HEX SOC SCREW,M6 x18mm, Cl 8.8, Full Thd

10шт.

17

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

4шт.

18

47126246

BOLT,Hex, M10 x 1.25 x 78mm, Spcl

4шт.

19

14437685

O-RING,9.30mm ID x 2.40mm

4шт.

20

87494226

PRESSURE SWITCH

4шт.

Выбрано товаров: 22
