Запчасти Case IH MAGNUM 190 (21.105.04[05]) - SOLENOID VALVES FOR TRANSMISSION CONTROL VALVE, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

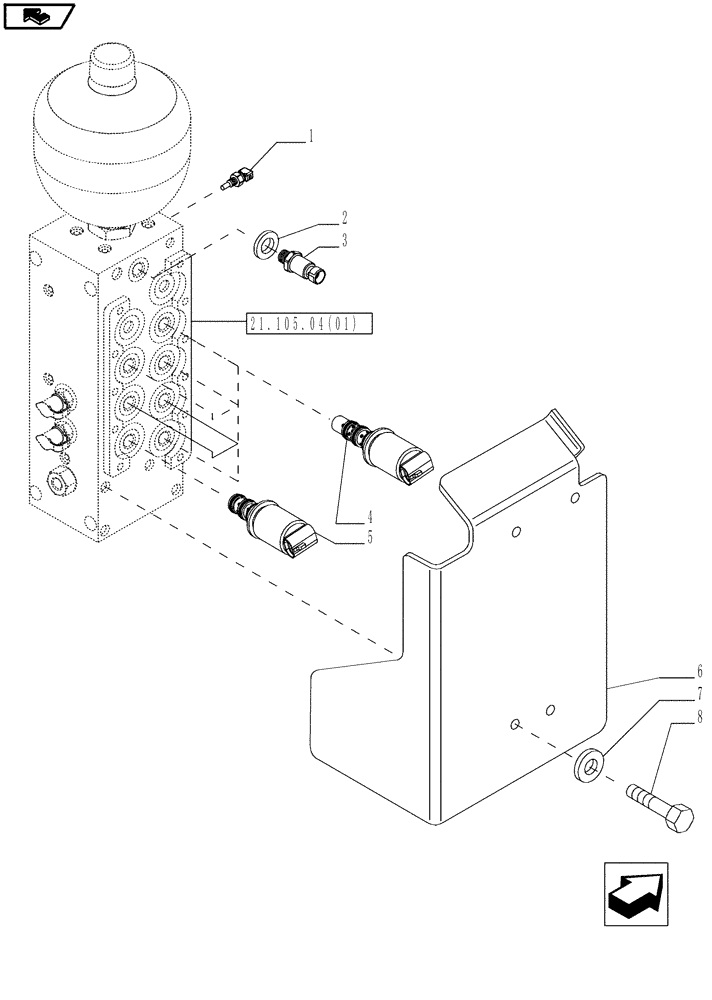

Схема запчастей Case IH MAGNUM 190 - (21.105.04[05]) - SOLENOID VALVES FOR TRANSMISSION CONTROL VALVE, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION
5
8
3
6
4
2
home
21.105.04(01)
7
1

Артикул

Название

Примечание

Количество

1

87484581

SENSOR

1шт.

2

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

3

87752203

PRESSURE SWITCH

Pressure

1шт.

4

87739558

SOLENOID VALVE,14W

6шт.

Qty=8 with 40 KPH "ECONOMY" and 50 KPH Transmissions, VAR.042

1шт.

4

87739558R

REMAN-SOLENOID

Qty=8 with 40 KPH "ECONOMY" and 50 KPH Transmissions, VAR.042

6шт.

4

87739558C

CORE-SOLENOID

Return Number

6шт.

5

87472229

CARTRIDGE

1шт.

6

87693141

COVER

1шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

8

16045021

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

4шт.

Выбрано товаров: 11
