Запчасти Case IH MAGNUM 190 (21.105.03[03]) - HYDRAULIC PUMP, CHARGE PUMP, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

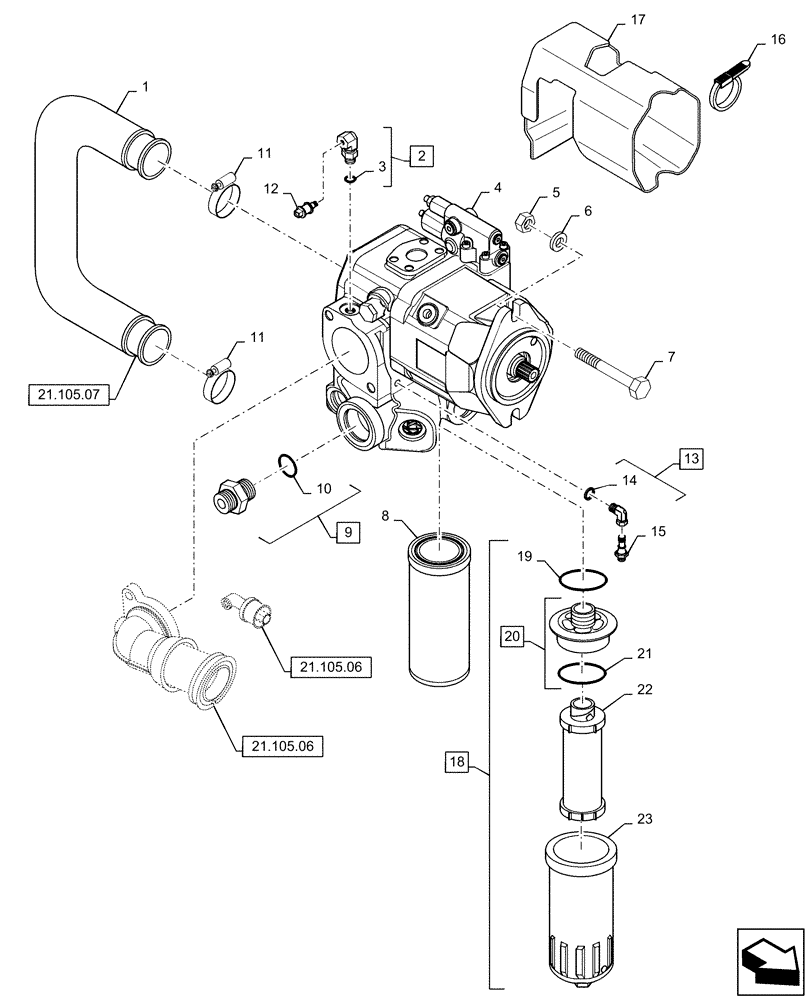

Схема запчастей Case IH MAGNUM 190 - (21.105.03[03]) - HYDRAULIC PUMP, CHARGE PUMP, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION
21.105.06
21.105.07
21
15
8
23
13
17
2
9
3
home
11
4
6
5
19
11
7
18
20
21.105.06
16
14
12
10
22
1

Артикул

Название

Примечание

Количество

1

84236626

HOSE,25.40 mm ID x 185.80 mm

1шт.

2

87667432

HYD CONNECTOR,M10 x 1 x M14 x 1.5

M14 x 1.5, Incl 2

1шт.

3

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

4

84235076

HYDRAULIC PUMP

56cc

1шт.

4

84353098R

REMAN-HYD PUMP

56CC

1шт.

4

84353098C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

84309311

HYDRAULIC PUMP

63cc

1шт.

4

84353100R

REMAN-HYD PUMP

63cc

1шт.

4

84353100C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

M14 x 1.5

2шт.

6

10730821

WASHER,Flat, 14.40mm ID x 26.00mm OD x 3.00mm, R80, ZND

2шт.

7

15877021

BOLT,Hex, M14 x 1.5 x 110mm, Cl 8.8

2шт.

8

84324774

HYDRAULIC OIL FILTER

Hydraulic Pump, If Equipped

1шт.

9

84252094

HYD CONNECTOR,M42 X 2 x 22mm

Incl 10

1шт.

10

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

11

86642485

CLAMP,1.31" - 2.25"

2шт.

12

82025340

RESTRICTION SWITCH

Vacuum

1шт.

13

84247208

HYD CONNECTOR,1/4" - 18 DRYSEAL NPTF - M10 x 1

Incl 14

1шт.

14

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

15

87564684

SWITCH ASSY

Oil

1шт.

16

14569387

HOSE CLIP

5шт.

17

84212218

NOISE PROTECTION

1шт.

18

84362926

HYDRAULIC OIL FILTER,112.8mm OD x 228mm L, 3/4-12

Hydraulic Pump, Original Equipment (First 50 Hours)

1шт.

At 50 hours service with 84417137 Filter Bowl, 84417139 Element, and 84550359 O-Ring. After that, service with 84417139 Element, and 84550359 O-Ring.

1шт.

19

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

1шт.

20

84474899

ADAPTER

Incl 21

1шт.

21

84550359

O-RING,84.50mm ID x 3.00mm

1шт.

22

84417139

ELEMENT,267.5mm L, 11 Micron

Service Only Refer to Statement on Callout # 18

1шт.

23

84417137

FILTER BOWL

Service Only Refer to Statement on Callout # 18

1шт.

Выбрано товаров: 29
