Запчасти Case IH MAGNUM 190 (21.105.03[02]) - HYDRAULIC PUMP, VANE PUMP, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

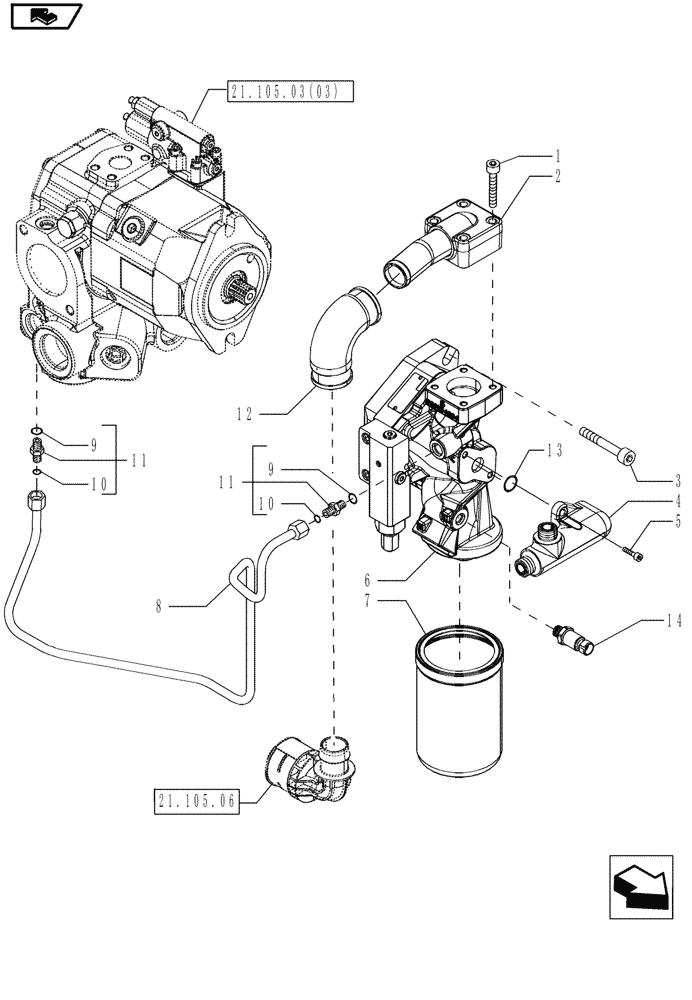

Схема запчастей Case IH MAGNUM 190 - (21.105.03[02]) - HYDRAULIC PUMP, VANE PUMP, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION
21.105.06
14
11
12
9
7
home
2
9
4
10
10
6
8
1
13
3
5
11
21.105.03(03)

Артикул

Название

Примечание

Количество

1

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

4шт.

2

87608113

TUBE

1шт.

3

14311821

SCREW,M14 x 1.5 x 45mm

M14 x 1.5 x 45

2шт.

4

87608369

FLANGE

1шт.

5

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

2шт.

6

87738887

PUMP,45 CC

Vane

1шт.

87738887R

REMAN-HYD PUMP

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225

1шт.

87738887C

CORE-HYDRAULIC PUMP

Return Number

1шт.

7

87588814

HYDRAULIC OIL FILTER,151mm L

1шт.

8

84122477

HYD TUBE

1шт.

9

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

11

86579674

HYD CONNECTOR,13/16"-16 ORFS x M14 x 1.5 ORB

Inc. 9, 10

2шт.

12

87608355

ELBOW,31mm OD x 45mm ID x 60/65mm

1шт.

13

14453880

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

14

87752203

PRESSURE SWITCH

1шт.

Выбрано товаров: 16
