Запчасти Case IH MAGNUM 190 (21.105.03[01]) - HYDRAULIC PUMP, IDLER GEARS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

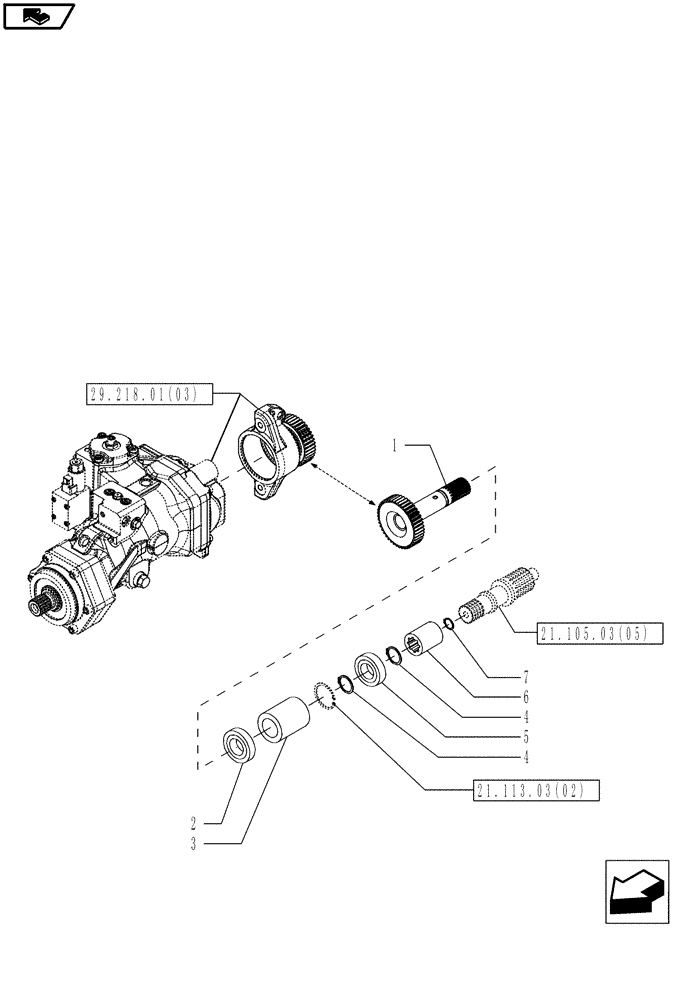

Схема запчастей Case IH MAGNUM 190 - (21.105.03[01]) - HYDRAULIC PUMP, IDLER GEARS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION
5
home
4
1
7
4
3
6
29.218.01(03)
21.105.03(05)
21.113.03(02)
2

Артикул

Название

Примечание

Количество

1

84243987

PINION,43T

1шт.

2

87562257

ROLLER BEARING,35mm ID x 72mm OD x 23mm W

35 x 72

1шт.

3

87534189

SPACER,65mm ID x 72mm OD x 52.5mm L

1шт.

4

5109282

CIRCLIP,M35, Ext x 2.50 Thk

2шт.

5

28996540

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

6

87538073

COUPLING RING,32.7mm ID x 48mm OD x 52mm L, 18T

1шт.

7

11058976

SNAP RING,M31, Int

1шт.

Выбрано товаров: 7
