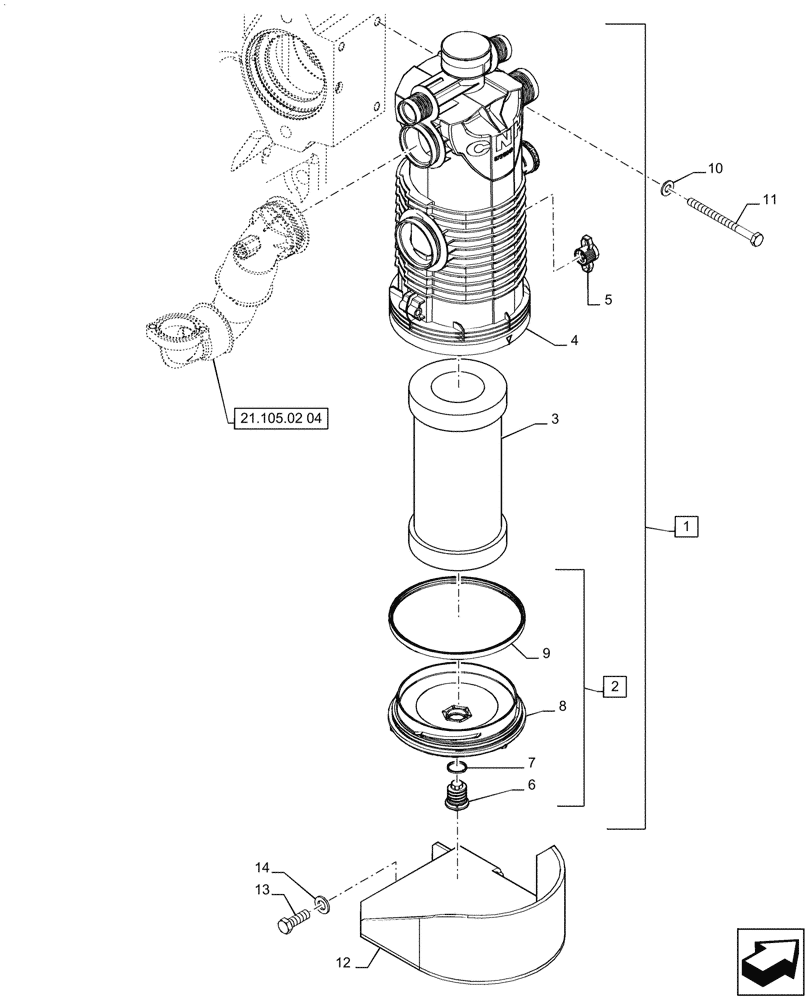

Запчасти Case IH MAGNUM 190 (21.105.02[05]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT, OIL FILTER, PIPES & SUPPORT, WITH POWERSHIFT TRANSMISSION (21) - TRANSMISSION

1

87313049

FILTER ASSY

ASSY, Incl 2 - 5

1шт.

2

87705159

FILTER COVER

ASSY, Incl 6 - 9

1шт.

3

87708150

HYDRAULIC OIL FILTER,Filter & Seal

Suction, 32 Micron, Includes Cover Gasket

1шт.

4

NSS

NOT SOLD SEPARAT

BODY, Incl in 1

1шт.

5

87705160

ARRESTER

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

COVER, Incl in 2

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET, Incl in 2

1шт.

10

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

11

15972421

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

2шт.

12

87758486

SHIELD

Hydraulic Filter

1шт.

13

11112421

SCREW,Hex, M12 x 30mm, Cl 8.8

2шт.

14

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.
