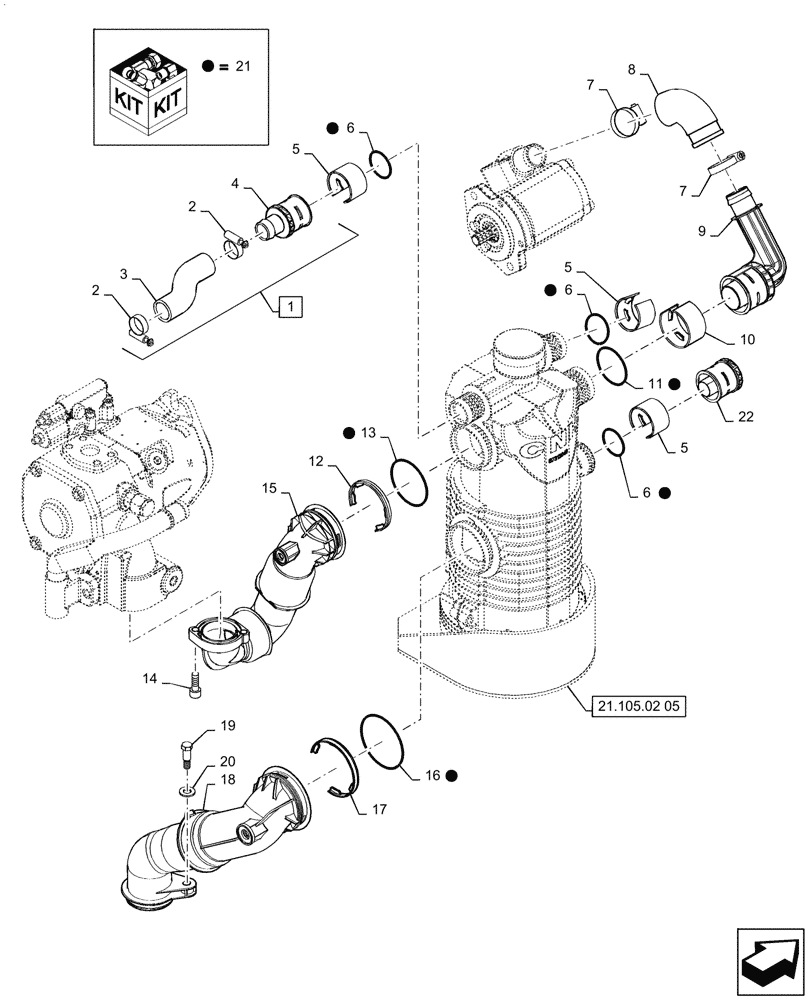

Запчасти Case IH MAGNUM 190 (21.105.02[04]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT, OIL FILTER, PIPES & SUPPORT, WITH POWERSHIFT TRANSMISSION (21) - TRANSMISSION

1

87492483

HOSE,32mm Bore Dia

G Port, Incl 2 - 4

1шт.

2

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

2шт.

3

NSS

NOT SOLD SEPARAT

HOSE, Incl in 1

1шт.

4

87381694

HYD CONNECTOR,21mm D x 22mm D

1шт.

5

84121298

SNAP RING,30mm Thk, Ext

3шт.

6

NSS

NOT SOLD SEPARAT

O-RING, Incl in 21

3шт.

7

82039346

HOSE CLAMP,30mm - 45mm, Worm Gear

2шт.

8

87323539

ELBOW,90 Deg, 31mm ID x 45mm OD

1шт.

9

87324688

ELBOW,90 Deg, 32.9mm - 27mm ID

Filter to Gear Pump

1шт.

10

87330755

STOP DEVICE

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING, Incl in 21

1шт.

12

87381696

SNAP RING,8mm Thk, Ext

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING, Incl in 21

1шт.

14

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

2шт.

15

87395841

TUBE

Filter to Piston Pump

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING, Incl in 21

1шт.

17

87381695

CIRCLIP,8mm Thk

1шт.

18

87473619

TUBE

Suction Pipe from Oil Sump to Filter

1шт.

19

87687675

BOLT,M8 x 1.25 x 32mm, Cl 8.8

1шт.

20

14496607

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

21

87705156

SEAL KIT

1шт.

22

87330798

PLUG,46mm ID

1шт.
