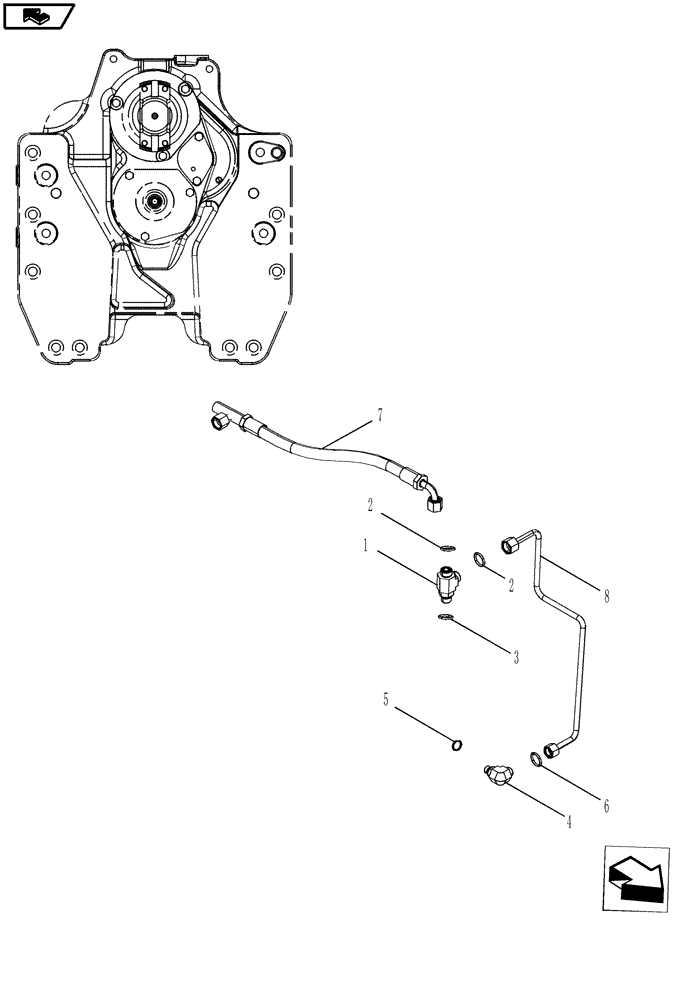

Запчасти Case IH MAGNUM 190 (21.102.07) - TRANSMISSION DROP BOX, LUBRICATION, WITH POWERSHIFT TRANSMISSION (21) - TRANSMISSION

1

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

5

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

84186720

HYDRAULIC HOSE

Lower Drop Box Lube

1шт.

8

87740778

TUBE,.375" OD

Hydraulic, Drop Box Lube

1шт.
