Запчасти Case IH MAGNUM 190 (10.254.06[02]) - DEF/ADBLUE™ LINES, COOLANT SERVICE PARTS (10) - ENGINE

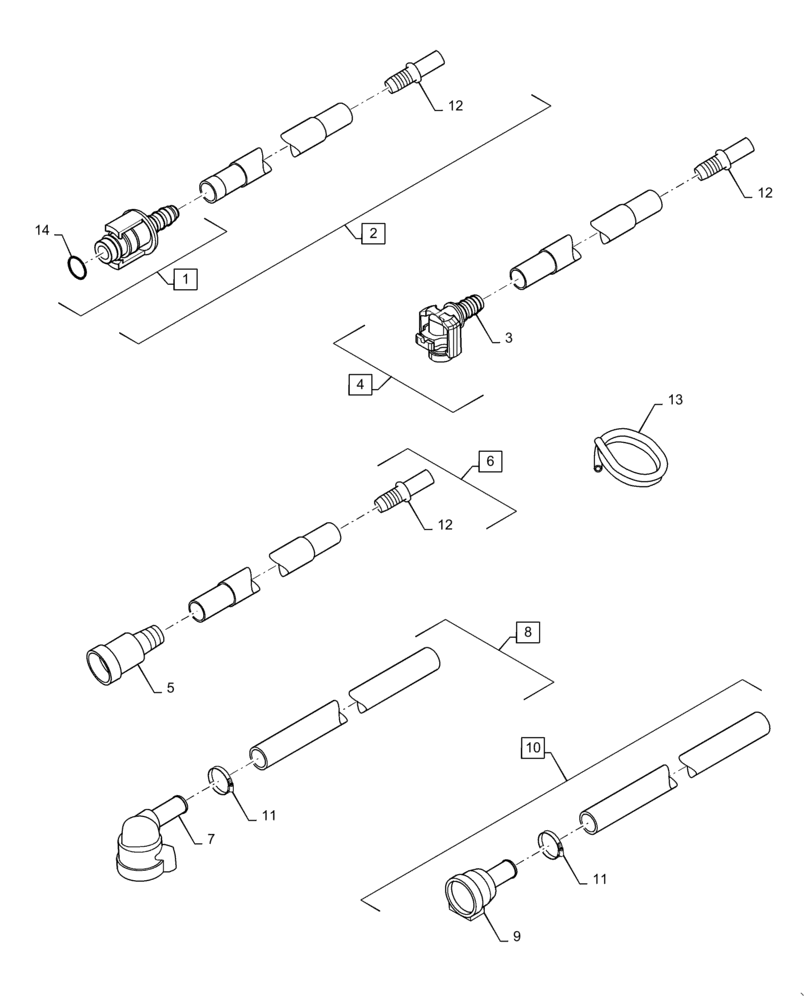

Схема запчастей Case IH MAGNUM 190 - (10.254.06[02]) - DEF/ADBLUE™ LINES, COOLANT SERVICE PARTS (10) - ENGINE
4
9
10
12
1
12
11
11
8
2
5
6
13
3
12
7
14

Артикул

Название

Примечание

Количество

1

84313865

UNION

Coolant, Straight Male, White Release Tab, 16mm OD, Incl 14

1шт.

2

47800925

HOSE

Coolant Repair, 9mm ID x 3.3mm Thick Wall x 302mm L. Used to Replace Fitting, Incl 1, 12, 14

1шт.

Install to Existing Line With Clamp 84480356.

1шт.

3

84204487

UNION

Coolant, 90° Female, White Release Tab

1шт.

4

47800931

HOSE

Coolant Repair, 9mm ID x 3.3mm Thick Wall x 302mm L. Used to Replace Fitting, Incl 3, 12

1шт.

Install to Existing Line With Clamp 84480356.

1шт.

5

84480352

UNION

Coolant, Straight Female

1шт.

6

47818946

HOSE

Coolant Repair, 9mm ID x 3.3mm Thick Wall x 302mm L. Used to Replace Fitting, Incl 5, 12

1шт.

Install to Existing Line With Clamp 84480356.

1шт.

7

84480355

FITTING

Coolant, PS3 NW12 90 Degree Female

1шт.

8

47818948

HOSE

Coolant Repair, 9mm ID x 3.3mm Thick Wall x 500mm L. Used to Replace Fitting, Incl 7, 11

1шт.

Install to Existing Line With Clamp 84480356.

1шт.

9

84480354

UNION

Coolant, PS3 NW12 Straight Female

1шт.

10

47818947

HOSE

Coolant Repair, 9mm ID x 3.3mm Thick Wall x 500mm L. Used to Replace Fitting, Incl 9, 11

1шт.

Install to Existing Line With Clamp 84480356.

1шт.

11

84480356

CLAMP

Hose, Coolant Hose Repair, Use with 1 - 10

1шт.

12

84480601

UNION

Brass, For 9mm ID Coolant Hose Repair

1шт.

13

84480613

TUBE

9mm ID, EPDM, Coolant Hose Repair, 10,000mm Long

1шт.

13

47862515

HOSE

9mm ID, EPDM, Coolant Hose Repair, 1000mm Long

1шт.

14

84480615

O-RING

Coolant Fittings, Lube With Coolant Only

1шт.

15

84480652

SVC MAINTENANCE KIT

DEF Line Repair, Incl 1, 3, 5, 7, 9, 11 (Qty. 2), 12 - 13 (1000mm), 14 (Qty. 20)

1шт.

Also Contains 9 -12, 14, 15 (Qty. 20), 16 - 17 from Figure 10.500.AD (03)

1шт.

16

84480359

SVC MAINTENANCE KIT

DEF Service, Incl 1, 3, 5, 7, 9, 11

1шт.

Also Contains 1 - 8, 1400mm & 5565mm Lengths of Coolant Hose from Figure 10.500.AD (03)

1шт.

Выбрано товаров: 24
