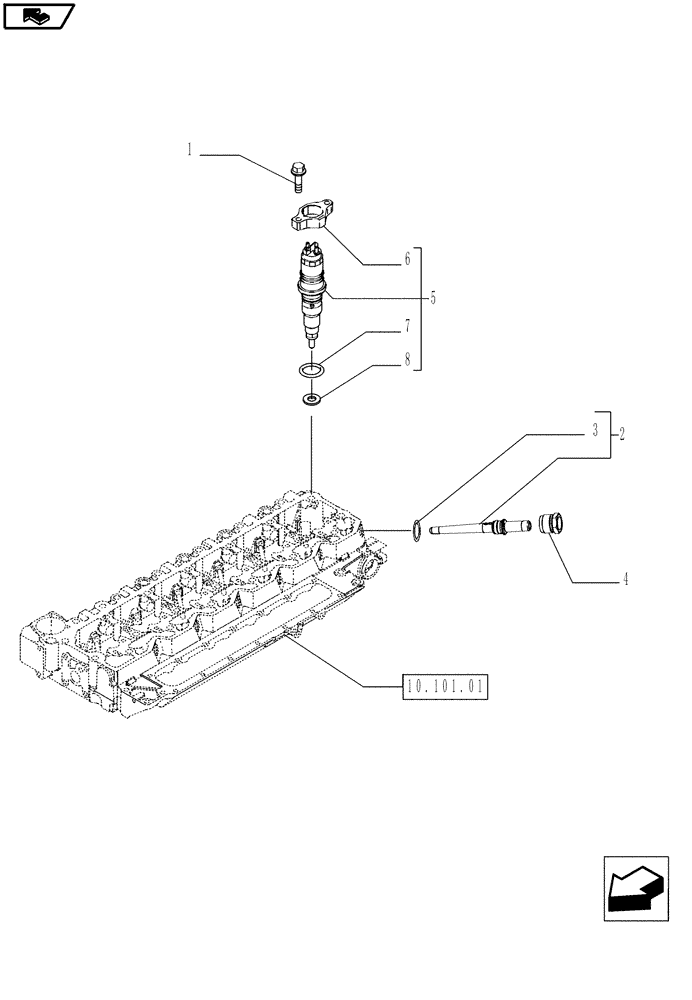

Запчасти Case IH MAGNUM 190 (10.218.01) - INJECTION EQUIPMENT, INJECTOR (10) - ENGINE

1

4895483

BOLT,Flng, M6 x 1 x 35mm

12шт.

2

2854606

FUEL TUBE,Connector Assembly

ASSY, Inc. 3

6шт.

3

4890929

O-RING,3mm Thk x 11mm ID

1шт.

4

4893739

TUBE NUT,Hex, M22 x 1.5

6шт.

5

2855135

FUEL SYSTEM INJECTOR

ASSY, Inc. 6 - 9

6шт.

5

2855135R

REMAN-FUEL INJECTOR

Reman for New PN 2855135

6шт.

5

2855135C

CORE-FUEL INJECTOR

Return Number

6шт.

6

2854609

BRACKET

1шт.

7

4890926

O-RING,3mm Thk x 20.9mm ID, 60 Duro

1шт.

8

4899689

SEALING WASHER,7mm ID x 15mm OD x 1.5mm Thk

1шт.

9

NSS

NOT SOLD SEPARAT

INJECTOR (Not Shown)

1шт.
