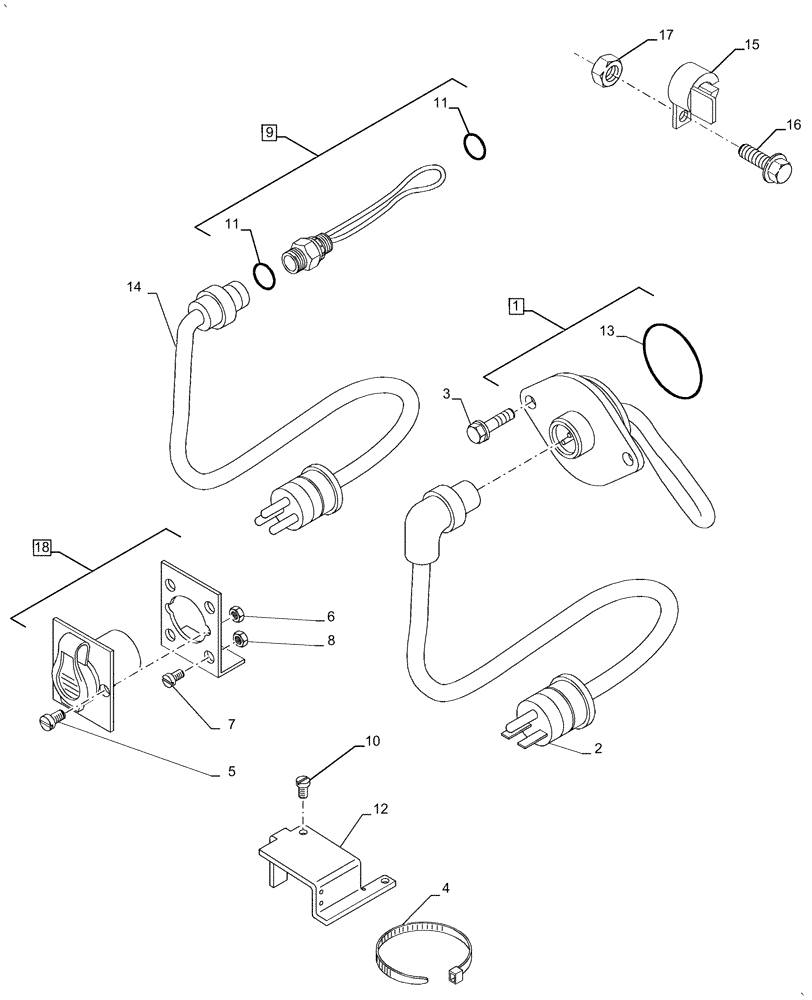

Запчасти Case IH MAGNUM 190 (10.001.03) - ENGINE BLOCK & TRANSMISSION HEATERS (10) - ENGINE

1

8602005

HEATER,750W, 120V

Engine Block, 120V Incl 13

1шт.

2

A44813

CABLE EXTENSION

Engine Block, 120V

1шт.

3

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

4

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

2шт.

5

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

2шт.

6

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

7

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

4шт.

8

10794011

NUT,M4, Cl 8

4шт.

9

87718030

HEATER

Trans Oil, 110V Incl 11

1шт.

10

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

1шт.

11

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

2шт.

12

87571524

GUARD

Trans Heater, PST

1шт.

12

84162403

GUARD

Trans Heater, CVT

1шт.

13

4891258

O-RING,1.984" ID x 2.262" OD x 0.139"

1шт.

14

82030791

ELECTRIC CABLE

110V, Inc. 19, 20

1шт.

15

87571719

BRACKET

Trans Heater Connector

1шт.

16

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

1шт.

17

825-5146

SERRATED NUT,M6, Flg Ser

1шт.

18

84130687

ELECTRIC CABLE

Incl 5 - 8

1шт.
