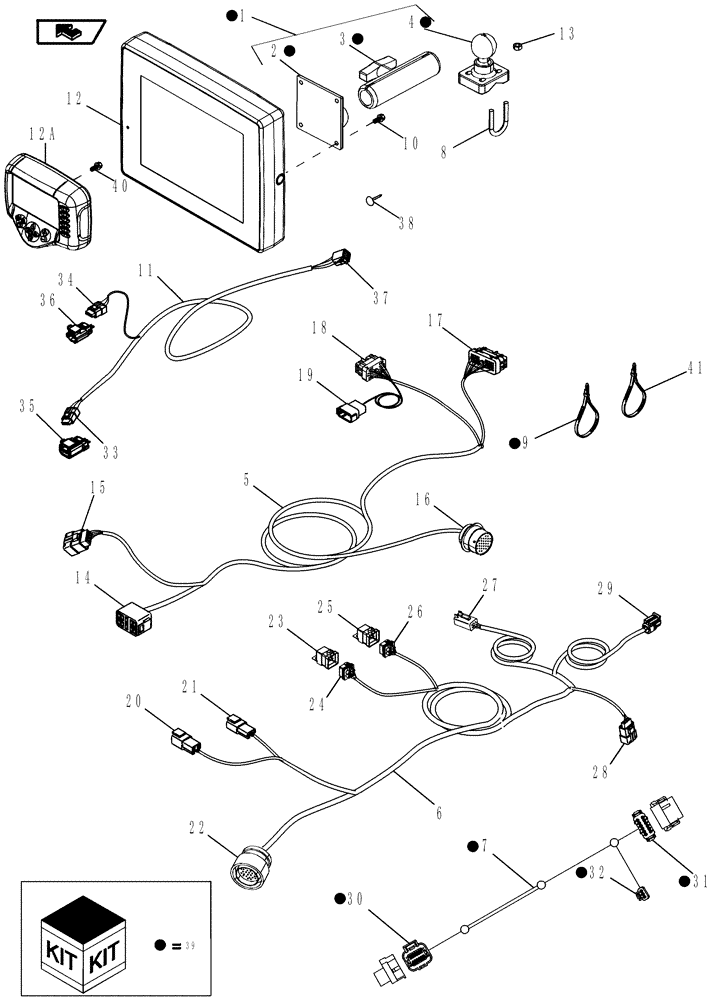

Запчасти Case IH MAGNUM 190 (55.680.05) - AUTOGUIDANCE, HARNESS & MONITOR (55) - ELECTRICAL SYSTEMS

1

87386396

MOUNT

Inc. 2 - 4

1шт.

2

87386398

SUPPORTING ARM

1шт.

3

87284257

ARM

1шт.

4

87284259

PLATE

1шт.

5

84291797

HARNESS

Inside Autoguidance, Inc. 14 - 19

1шт.

6

84164649

HARNESS

Outside Autoguidance, Inc. 20 - 22, 24, 26 - 29

1шт.

7

87671834

HARNESS

Terminal, Inc. 30 - 32

1шт.

8

86632541

U-BOLT,1/4” - 20, 1.75” L x 1” W

2шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

10

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

11

87544763

HARNESS

Steering Sensor, Inc. 33 - 34, 37

1шт.

12

84126831

CONTROL MONITOR

DISPLAY Touch Screen, AFS PRO600 (Black)

1шт.

12

87385125R

REMAN-ELECT MONITOR

Magnum 180, Magnum 190, Magnum 210, Magnum 225, All Tier 3, Reman For New P/N 84126831

1шт.

12

87385125C

CORE-MONITOR

Return Part Number

1шт.

12

84604338R

REMAN-ELECT MONITOR

Magnum 180, Magnum 190, Magnum 210, Magnum 225, All Tier 3, Reman For New P/N 84126831

1шт.

12

84604338C

CORE-MONITOR

Return Part Number

1шт.

12

84240409

MONITOR

Touch Screen, AFS 300 1.5 TS

1шт.

12

84486874R

REMAN-ELECT MONITOR

Magnum 180, Magnum 190, Magnum 210, Magnum 225, All TIER 4 ZARH06086 And After, Reman for New PN 84240409

1шт.

12

84486874C

CORE-MONITOR

Return Part Number

1шт.

12a

84240403

CONTROL MONITOR

Short Wide Color Display 1.5TS

1шт.

12a

84486874R

REMAN-ELECT MONITOR

Magnum 180, Magnum 190, Magnum 210, Magnum 225, All TIER 4 ZARH06086 And After, Reman for New PN 84240403

1шт.

12a

84486874C

CORE-MONITOR

Return Part Number

1шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

14

382391A1

MULTIPOLE CONNECTOR,Female, 10 Pin

10, 297M Roading (Manual) Switch

1шт.

15

87382922

WIRE CONNECTOR,Female, 10 Cavities

10, 408F To Cab Harness

1шт.

16

380839A1

ELEC CONNECTOR,Female, 31 Pin

15, 290F To Outside Autoguidance Harness

1шт.

17

198459A1

CONNECTOR, ELEC

CONNECTOR 20, 407M Autoguidance Controller Port A

1шт.

18

244615A1

CONNECTOR, ELEC

CONNECTOR 12, 409M Autoguidance Controller Port B

1шт.

19

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

12, 391F Diagnostics Connector

1шт.

20

222136A1

ELEC CONNECTOR,Male, 2 Pin

2, 386F To Antenna Harness Power (GPS Receiver)

1шт.

21

277905A1

ELEC CONNECTOR,Male, 4 Pin

4, 299F To Antenna Harness RS232 (GPS Receiver)

1шт.

22

380838A1

ELEC CONNECTOR,Male, 31 Pin

15, 290M To Inside Autoguidance Harness

1шт.

23

293256A2

RELAY,12V

5, Left Steer Relay

1шт.

24

297910A1

ELEC CONNECTOR,Female, 5 Pin

5, 1255M To Left Steer Relay

1шт.

25

293256A2

RELAY,12V

6, Right Steer Relay

1шт.

26

297910A1

ELEC CONNECTOR,Female, 5 Pin

6, 1256M To Right Steer Relay

1шт.

27

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4, 390M To Steering Solenoids

1шт.

28

198456A1

ELEC CONNECTOR,Female

3, 275M To Pressure Transducer

1шт.

29

87382911

WIRE CONNECTOR,Male, 3 Cavities

3, 375M To Steering Harness

1шт.

30

87410948

CONTACT HOUSING,Female, 26 Pole

13, 281M Virtual Terminal

1шт.

31

223688A1

CONNECTOR, ELEC

CONNECTOR 12, 421M Jumper Harness Connector

1шт.

32

276424A1

ELEC CONNECTOR,Female, 3 Pin

3, 420MM To Cab Harness

1шт.

33

87382911

WIRE CONNECTOR,Male, 3 Cavities

3, To Steering Harness

1шт.

34

87382910

WIRE CONNECTOR,Female, 3 Cavities

3, 375F To Steering Harness

1шт.

35

87382910

WIRE CONNECTOR,Female, 3 Cavities

3, To Auxillary Harness

1шт.

36

87382911

WIRE CONNECTOR,Male, 3 Cavities

3, 437M To Auxillary Harness

1шт.

37

225351C1

ELEC CONNECTOR,Female, 6 Pin

6, 500M To Steering Sensor

1шт.

38

333772A1

PLUG

For Use When No Monitor is Present

4шт.

39

87472408

PACKAGE

Kit, Codi Display Mounting, Inc. 1 - 4, 7, 9, 30 - 32

1шт.

40

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

4шт.

41

86991009

CABLE TIE,222mm L, Nylon

CABLE STRAP

1шт.
