Запчасти Case IH MAGNUM 190 (55.404.01) - HEADLAMPS (55) - ELECTRICAL SYSTEMS

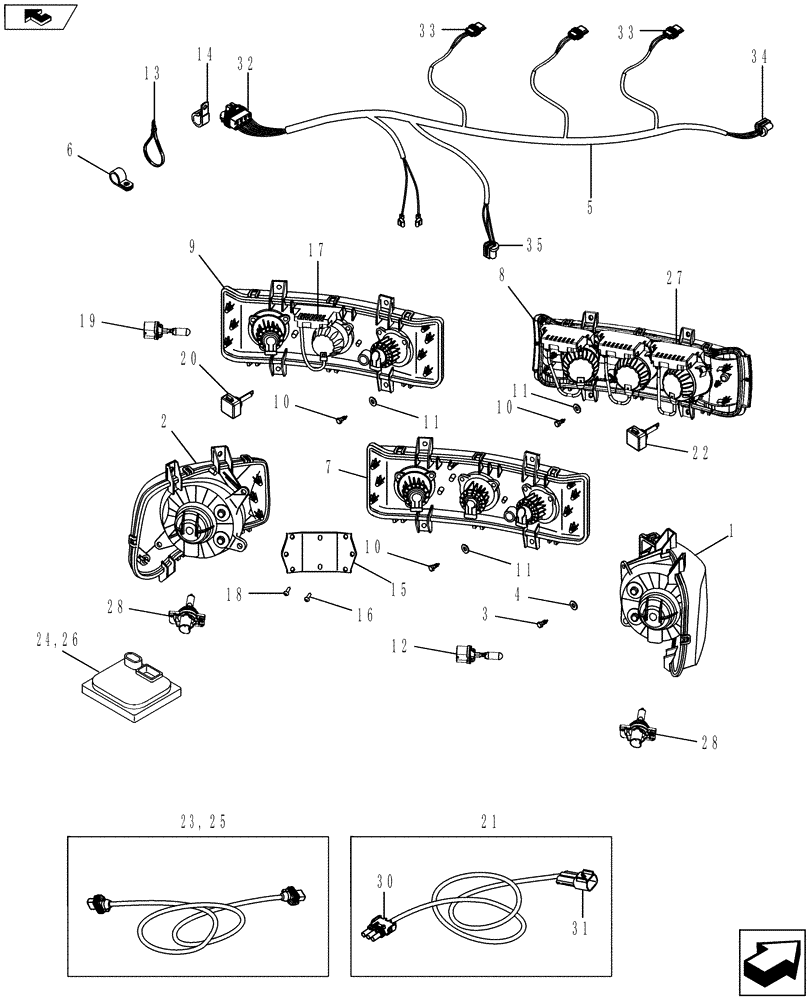

Схема запчастей Case IH MAGNUM 190 - (55.404.01) - HEADLAMPS (55) - ELECTRICAL SYSTEMS
9
8
1
10
28
3
6
25
27
21
16
20
30
33
26
33
11
18
5
31
10
10
35
home
11
13
19
7
32
12
28
4
14
17
11
23
2
24
22
15
34

Артикул

Название

Примечание

Количество

1

87309030

RH HEADLAMP

Right Hand Dip, Inc. 28

1шт.

2

87309029

LH HEADLAMP

Right Hand Dip, Inc. 28

1шт.

3

779-14619

SELF-TAP SCREW,Hex Hd, M6.3 x 19

6шт.

4

495-21031

WASHER,1/4"

6шт.

5

87546827

HARNESS

Headlight

1шт.

6

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

2шт.

7

87455676

HEADLAMP,Halogen, 12V, 60W

Center, 3 Halogen bulbs, Inc. 12

1шт.

8

87455677

WORK LAMP

Center, 3 HID Bulbs, Inc. 22, 25 - 27

1шт.

9

87308895

WORK LAMP

Center, Single HID, 2 Halogen Bulbs, Inc. 17, 19, 20, 23, 24

1шт.

10

779-14619

SELF-TAP SCREW,Hex Hd, M6.3 x 19

4шт.

11

495-21031

WASHER,1/4"

4шт.

12

323093A1

BULB

885-12V, Work Lamp

1шт.

13

291207C1

CLAMP

3шт.

14

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

5шт.

15

84346306

BRACKET

2шт.

16

87316148

SELF-TAP SCREW

3.5 x 16

2шт.

17

87316350

COVER

1шт.

18

760-17113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

12шт.

19

87316352

BULB,HB3, 12V, 60W

HB3 60W Halogen

2шт.

20

84607408

BULB,HID, 12V, 35W

HID

1шт.

21

87535841

WIRE HARNESS,Halogen

Ballast to Halogen Lamp

2шт.

22

84607408

BULB,HID, 12V, 35W

HID

3шт.

23

87573744

WIRE HARNESS,H.I.D.

Ballast to HID Lamp, 390mm L

1шт.

24

87388468

BALLAST

HID

1шт.

25

87573744

WIRE HARNESS,H.I.D.

Ballast to HID Lamp, 390mm L

3шт.

26

87388468

BALLAST

HID

3шт.

27

87316350

COVER

Ballast

3шт.

28

87365799

BULB

HB5

1шт.

29

87328621

LAMP

80 mm Dia W/HID Center (Not Shown)

1шт.

30

87658555

MULTIPOLE CONNECTOR,Female, 3 Pole

3-Pin, HID Ballast

1шт.

31

87686733

WIRE CONNECTOR,Male

2-Pin, Headlight Harness

1шт.

32

87382922

WIRE CONNECTOR,Female, 10 Cavities

10-Pin, 109M Bussman Box

1шт.

33

87686685

WIRE CONNECTOR,Female

2-Pin, 409M, 410M, 411M Left, Center, Right Light

3шт.

34

198714A1

CONNECTOR, ELEC

CONNECTOR 3-Pin, 2M Right Hand Headlight

1шт.

35

198714A1

CONNECTOR, ELEC

CONNECTOR 3-Pin, 4M Left Hand Headlight

1шт.

Выбрано товаров: 35
