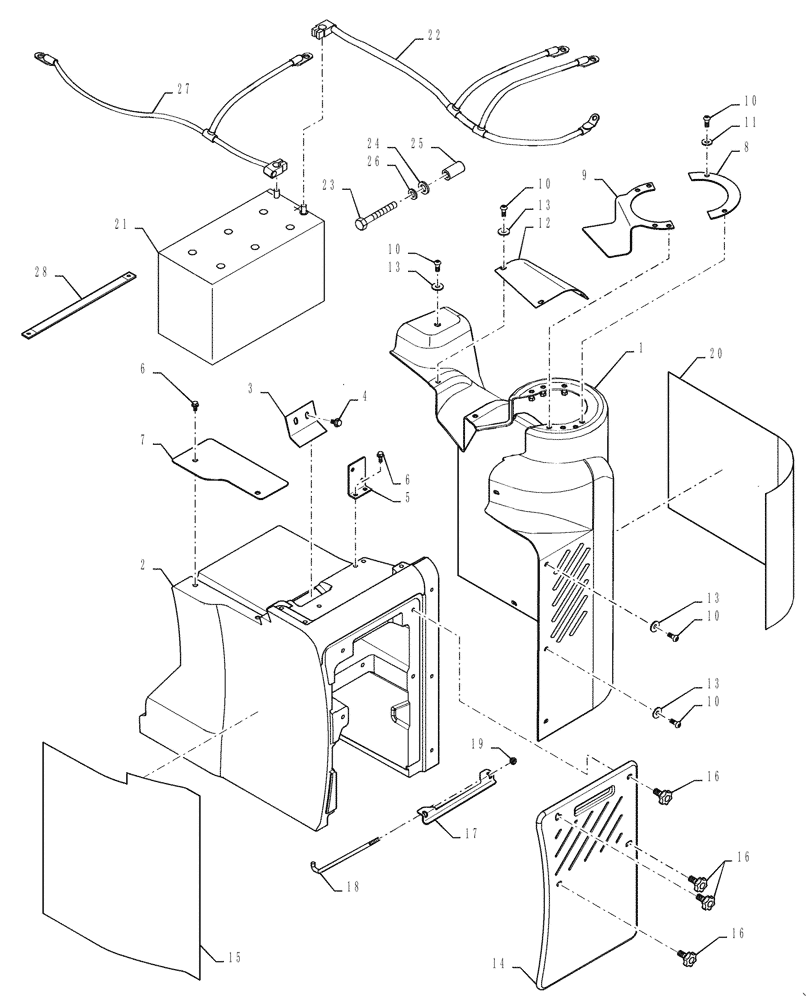

Запчасти Case IH MAGNUM 190 (55.301.02[02]) - BATTERY, BATTERY BOX & CABLES - ASN ZCRH01701 (55) - ELECTRICAL SYSTEMS

1

84377606

COVER

Styling, SCR Muffler Battery

1шт.

2

84499500

MOUNT

Battery

1шт.

3

84593030

BRACKET

Battery Mold

1шт.

4

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

5

84593036

BRACKET

Support

1шт.

6

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

7

84499502

BRACKET

Harness Cover

1шт.

8

84377609

SEAL

Exhaust

1шт.

9

84377611

SEAL

Exhaust

1шт.

10

87675525

SCREW,BTN HD, M8 x 1.25 x 20mm, Cl 12.9

14шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

12

84395588

COVER

Access for Loader Hoses

1шт.

13

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8шт.

14

84593041

COVER

Battery

1шт.

15

84377112

HEAT SHIELD

Sticker Battery Box

1шт.

16

394133A1

KNOB

Battery Box Cover

4шт.

17

84345469

ANGLE

Battery Hold Down

1шт.

18

84262402

THREADED ROD

Battery Hold Down

2шт.

19

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

20

84377101

HEAT SHIELD

Heat, Sticker SCR Cover

1шт.

21

BCMD5W

WET BATTERY,Group D5, 1400 CCA, 380 RC

US

1шт.

21

CBCMD5W

WET BATTERY,Group D5, 1400 CCA, 380 RC

Canada

1шт.

22

84260410

POS BATTERY CABLE

1шт.

23

814-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 8.8

1шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

25

1331939C1

SPACER

Drawbar Strap

1шт.

26

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

1шт.

27

84260405

NEG BATTERY CABLE

1шт.

28

87424307

GROUND STRAP

1шт.
